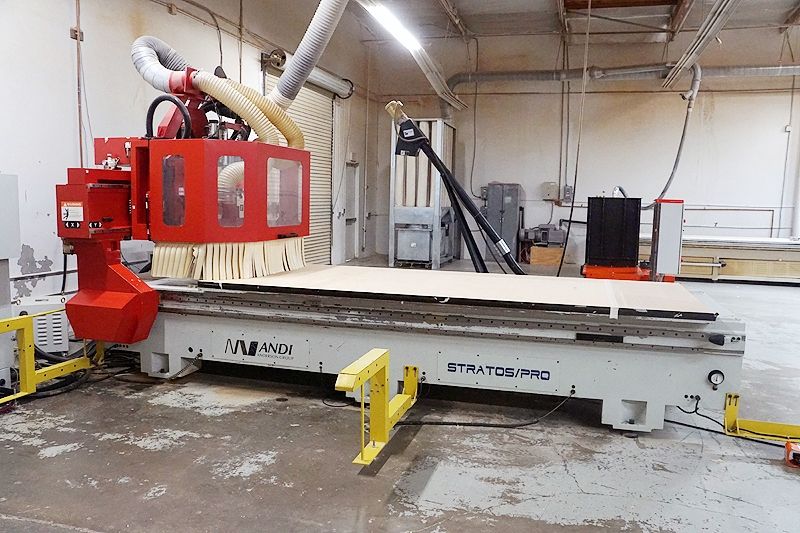

Andi Stratos Pro

CNC Router
2o Kw
208/240/480 V
110/96/50 A
3 Phase

5′ x 12′ Table (145.7″ x 63″)
Table work height 35-1/2″
Axis stroke:
X-axis 3900 mm (153.5″)
Y-axis 2180 mm (85.5″)
Z-axis 350 mm (13.8″)
Feed speed:
X-axis 80 m/min
Y-axis 60 m/min
Z-axis 30 m/min

Vertical Electro router spindle
7.5/11 Kw, inverter driven spindle
1,000 to 24,000 rpm speed range
HSK 63F spindle mount

Automatic Tool Changer (12 Holders) Ride Along
Drill spindles arranged in L-shape formation
(7) Spindles in X-axis,
(7) spindles in Y-axis (1 spindle shared)
32 mm spindle centers
Programmable spindles for various drilling patterns
(1) 1+1 horizontal drill block with opposing spindles mounted in X-axis
(1) 1+1 horizontal drill block with opposing spindles mounted in Y-axis

Fixed table moving gantry machine design
Rack and pinion X-axis drive system
Ball screw Y and Z-axis drive system
THK linear table bearings
Front lift up door safety access door

(2) Becker vacuum pumps with rack
Model VTLF 2.250/0-79
Vacuum capacity 244/286 M3/h
6.6 Kw
230/460 volt three phase pump motors



(2) Table vacuum work zones with foot pedal controls
Freestanding electrical and computer control station cabinet
Color monitor, keyboard and mouse
Fanuc Servo controls
Delta VFD inverter spindle speed drive
Hand held operator controller
Includes the machine operators manuals, tool holder changing fixture/wrench, wood table cart with misc supplies
