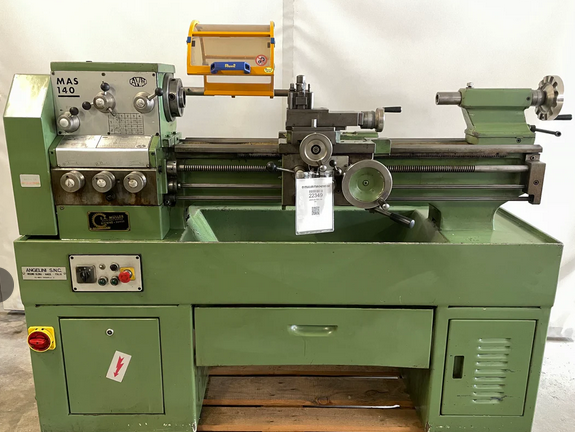

Angelini Engine Lathe 2840 t/min MAS 140

Ref : 2788372-3-MT

Condition : Used

Manufacturer : Angelini

Type : Engine Lathe

Spindle Speed : 2840 t/min

Model : MAS 140

Year(s) : -

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

Centre height 140 mm
Distance between centres 800 mm
Spindle hole 35 mm
Spindle taper MT 5
Taper in tailstock 3 CM
Spindle speeds 8 steps
Spindle speed from 45 t/min
Spindle speed up to 2840 t/min
Longitudinal feed from 0.5 mm/t
Longitudinal feed up to 7 mm/t
Frontal feed from 0.5 mm/t
Frontal feed up to 7 mm/t
Voltage 50 Hz 3x380 V
Machine weight 720 kg
Overall dimensions L 1600 mm
Overall dimensions W 650 mm
Overall dimensions H 1200 mm
3-jaw chuck Ø160 mm
Fixed steady
Quick change tool holder
Set of steel holders
Set of gears
Drilling tailstock
Lathe chuck protection
