Apex Z-Motion U-Arm Digital Rad Room

CMP 200-50kw CPI Generator
50kW, 600 mA, 150 kV, 630mA, .1 - 630 mAs high frequency generator.
Power requirements: 3 x 208/230 or 3 x 400/480 VAC (please specify).
Options include AEC and console pedestal.

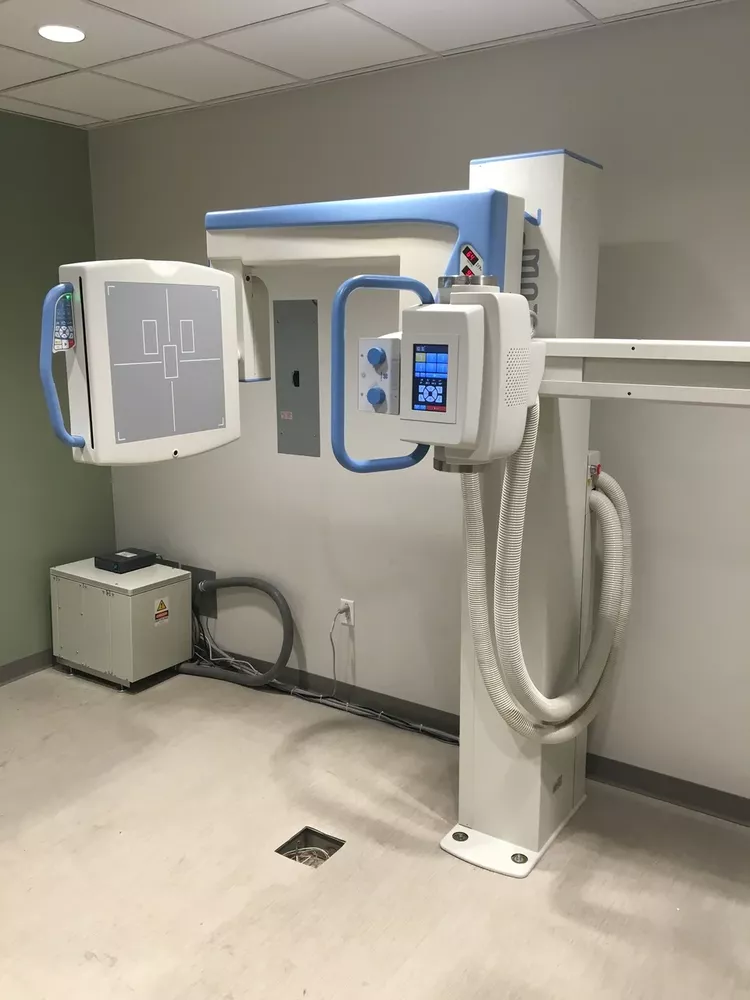

Z-Motion (8600)
The Z-Motion Universal Stand provides a new approach for
practitioners to employ digital flat panel technology.
Fully motorized and manual movements, counterbalanced for quick
and quiet position changes.
Minimum ceiling height required: 7'10".
Vertical arm travel: 47.25", SID range: 39. - 79",
Imager rotation: +/- 45 degrees.
Z-Arm rotation: -30 to +120 degrees.
Rotation of x-ray tube: +/- 90 degree.
Voltage 100-240 VAC +/- 10% 50-60 Hz

RAD 68 (15100-68)
Diamond, 150 kVp, 300KHU X-Ray Tube, TM Target. Standard Speed.
0.6/1.2 or 1.0/2.0 Focal Spots, 14 deg.
Target Angle. 38/66kW (3-phase Standard Speed).
Supplied with 50' stator cable.1 year non-prorated warranty

Ralco R-108 (R-108-724)
R-108/724 Maual collimator with LED Field Indicator and
Laser Pointer

500-35 (200-35)
35' H.V. cable pair with Federal terminals on both ends

20010L17
200 Line 10:1 ratio grid for 17" Buckys or Grid Cabinets.
Focus range is 40-72"

20010M17
200 Line 10:1 ratio grid for 17" Buckys or Grid Cabinets.
Focus range is 34-44”

APEX Grid Frame
Grid Frame with handle for use with Z-motion grids

APEX Grid Frame
Grid Frame with handle for use with Z-motion grids

Prognost XS (PRN XS)
Cantilever Style Portable Radiolucent Table with 77" x 25.75" Tabletop, fixed height 30" and locking casters
