Arburg 270 U 400-100 40 T
Ref :
2720870-6-MT
Condition :
Used
Manufacturer :
Arburg
Model :
270 U 400-100
Capacity :
40 T
Year(s) :
2006
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)

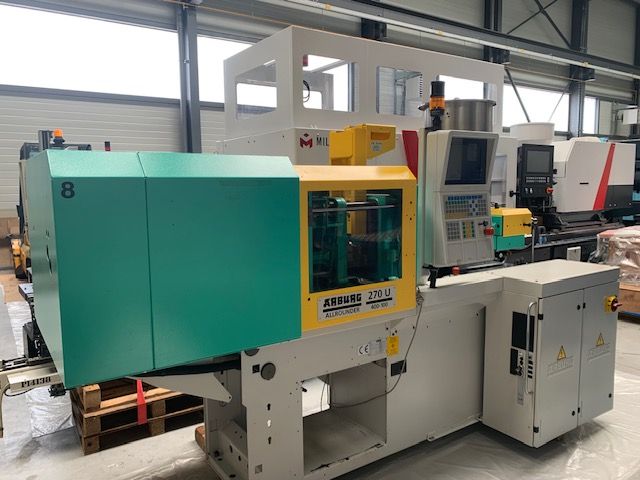

ARBURG 40T 270 U 400-100 TILTING INJECTION MOULDING PRESS
Injection Unit
Screw Diameter: 25 mm
Calculated Injection Volume: 49 cm3
Length/Diameter Ratio: 20 L/D
Maximum Injection Rate: 146 cm3/s
Material Pressure: 2000 bar
Clamping Unit
Clamping Force: 400 kN
Opening Stroke: 300 mm
Minimum Mold Thickness: 200 mm
Maximum Distance Between Platens: 500 mm
Passage Between Columns: 270 x 270 mm
Plate Dimensions: 380 x 380 mm
General
Clamping Power Heating: 15 kW
Total installed power: 22 kW
Oil capacity: 125 L
Weight: 1915 kg
Other
Equipment: Tilting machine
Commissioned: 2006
Tonnage: 40
