Arburg 320C 500-170 50 T
Ref :
2755021-6-AW
Condition :
Used
Manufacturer :
Arburg
Model :
320C 500-170
Capacity :
50 T
Year(s) :
2015
Quantity :
1
Location :
Seller or machines location:
EUROPE (Central and Eastern)
EUROPE (Central and Eastern)

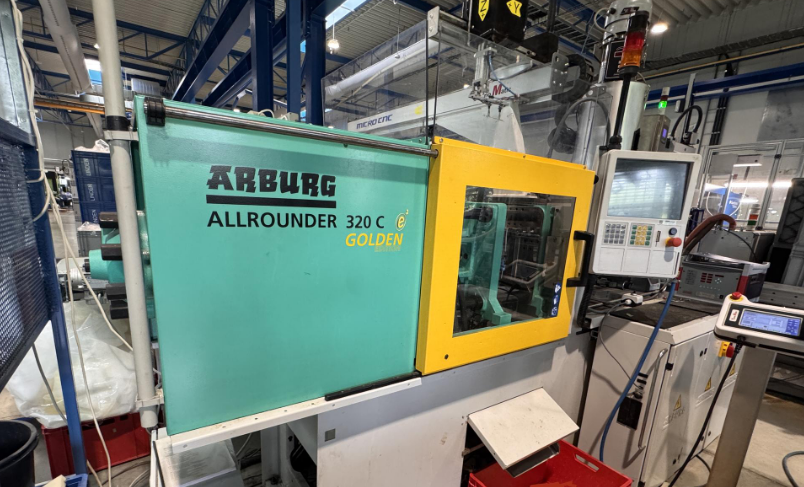

Arburg 320 C 500-170 (2015) Golden edition
Working hours : 40.167 h
Clamping force: 50 t
Screw diameter : 30 mm
Clamping force: 500 kN
Distance between tie bars: 320 × 320 mm
Platen size (H × V): 446 × 446 mm
Minimum mould height: 200 mm
Maximum daylight opening: 550 mm
Ejector stroke: 125 mm
Screw diameter: 30 mm
Maximum shot volume: 85 cm³
Maximum shot weight (PS): 77 g
Injection pressure: 2000 bar
Screw speed max: 400 r/min
Nozzle stroke: 250 mm
Nozzle contact pressure: 40.6 kN
Heating capacity: 9.4 kW
Pump drive power: 11 kW
Total installed power: approx. 20.5 kW
Machine length: approx. 3.4 m
Machine width: approx. 1.4 m
Machine height: approx. 2.0 m
Machine weight: approx. 2 400 kg
2 pumps machine
