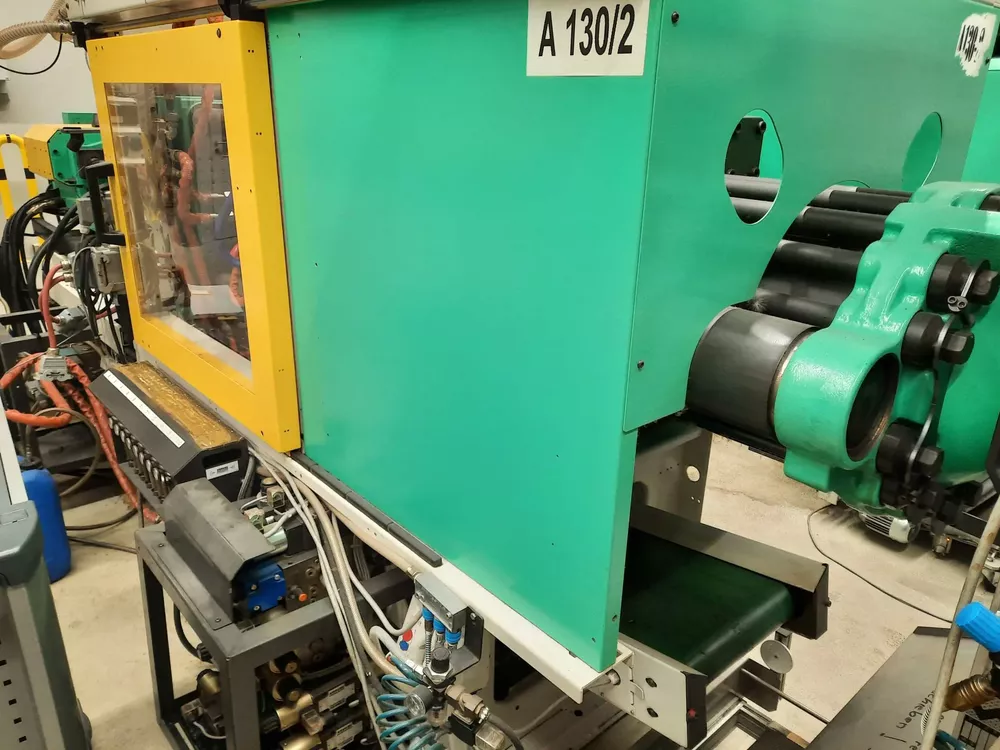

Arburg 420 C Advanced 1300-675 130 T

Automatic operation: 106,864 h
Clamping force: 1300 kN
Screw diameter : 25 mm
Screw travel: 180 mm
Approach force: 50 kN
Opening travel: 500 mm
Clamping plate spacing: 750 mm
Ejector force: 40 kN

Advance Package
– VE561/20 LGS
position-controlled screw with control valve on the injection unit for
particularly high dynamics and reproducibility of the injection process;
the back pressure is regulated, the nozzle contact force is
manually adjustable.
– VE 557/00 AES
energy-saving system for automatic performance optimization and corresponding energy savings through stepless adjustment of
the pump drive speed to the respective power requirement of
the injection cycle.
– VE 460/00 ED
electromechanical metering drive via a speed-controlled
three-phase asynchronous motor for increased productivity
through simultaneous movement,
gentler material handling, and corresponding energy savings
compared to hydraulic metering.
