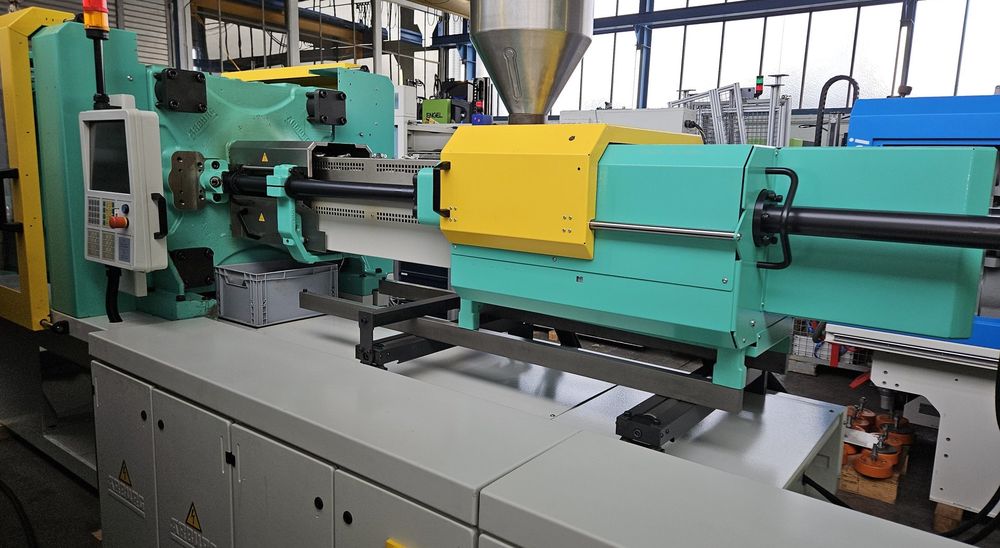

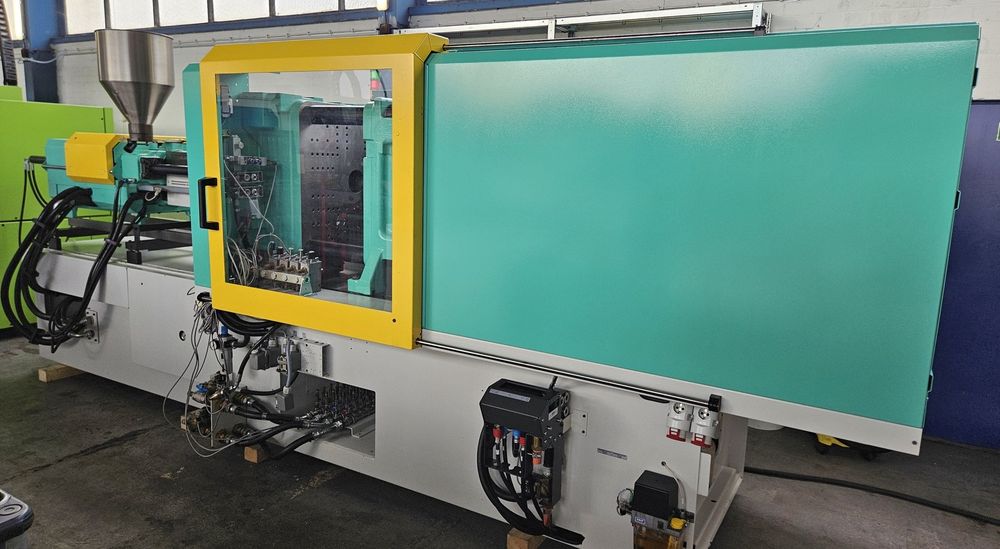

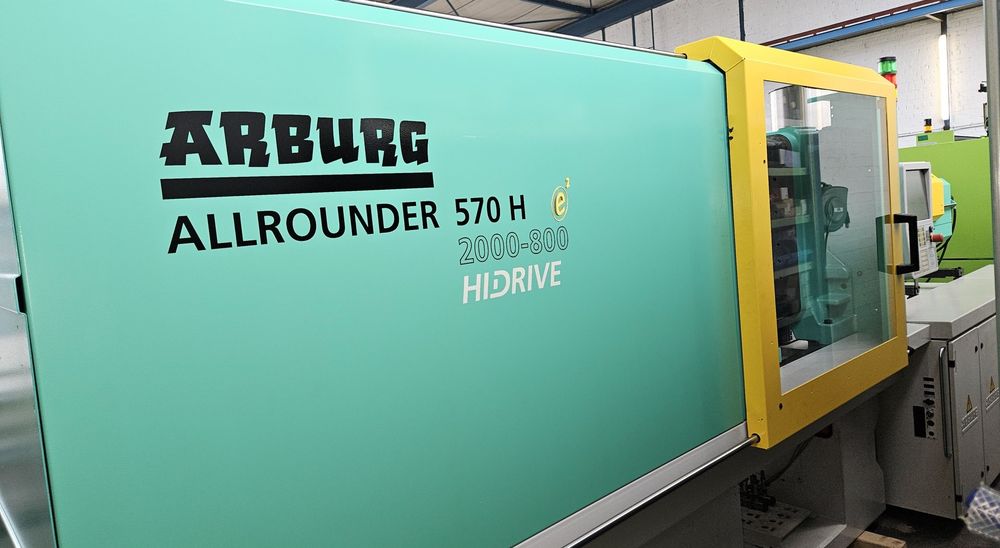

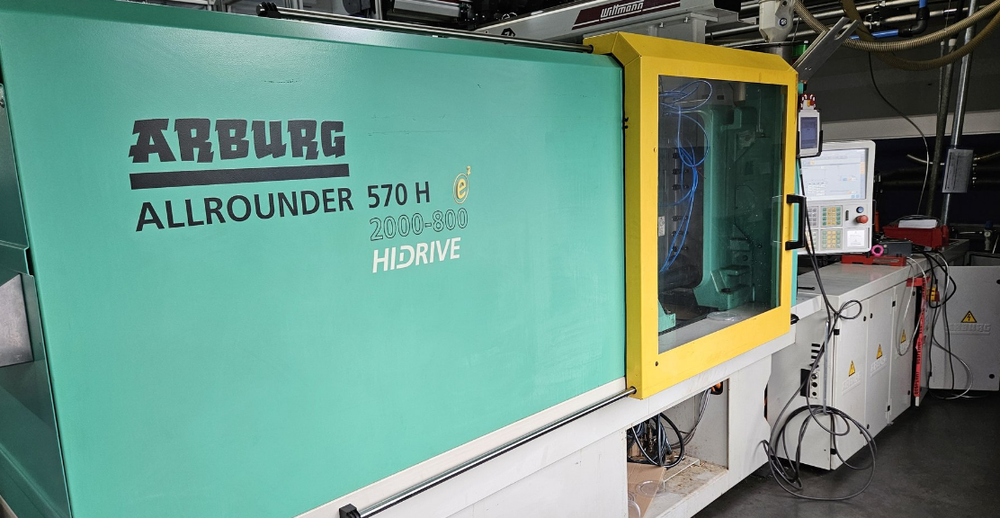

Arburg Allrounder 570 H 2000-800 200 T

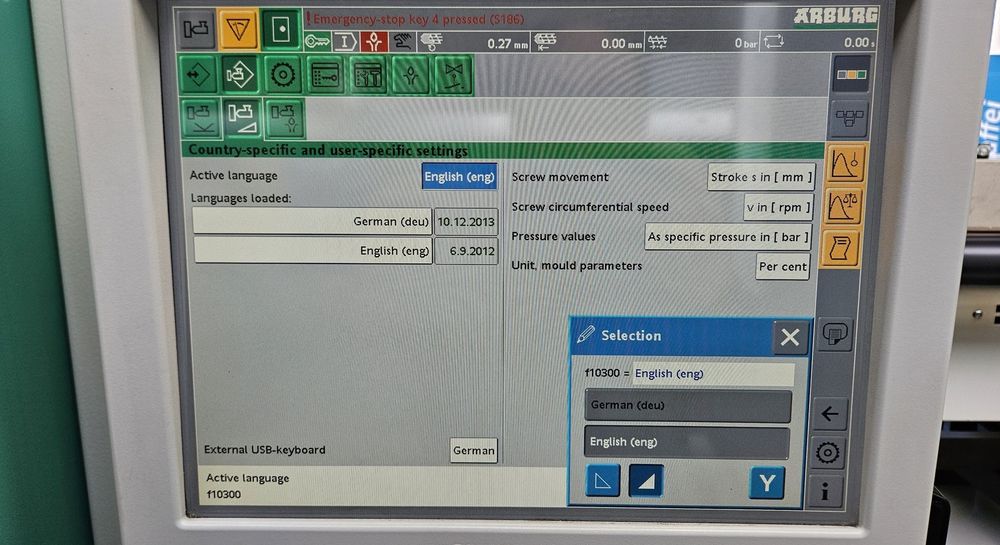

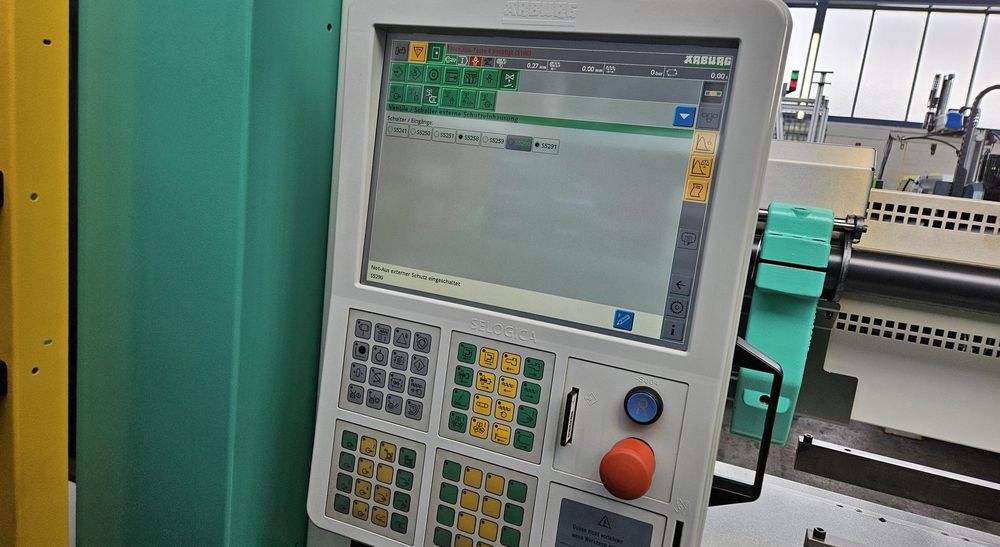

Control: Selogica
Year of manufacture: 2011
Operating hours: 34,217 h

Technical data, closing side
Clamping force: 2,000 kN

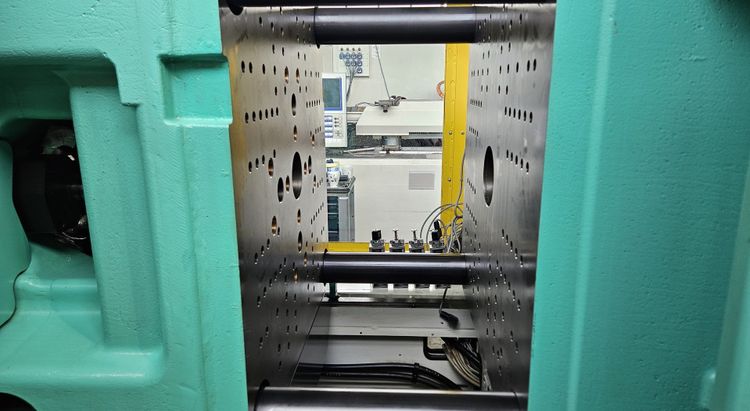

Hole dimensions h x v: 570 x 570 mm
Plate size h x v: 795 x 795 mm
Installation height min.: 250 mm
Installation height max.: 550 mm
Plate spacing max.: 1,000 mm
Opening stroke: 450 mm
Ejector stroke: 200 mm
Ejector force: 60 kN
Centering, moving plate D: 125 mm
Centering, fixed plate D: 125 mm
Mold weight: 1,300 kg

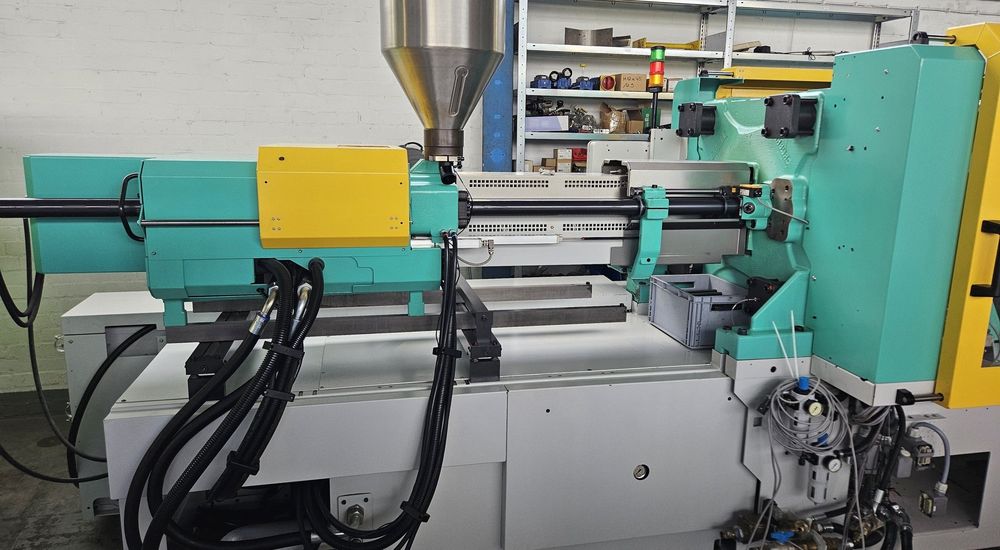

Technical data, injection side

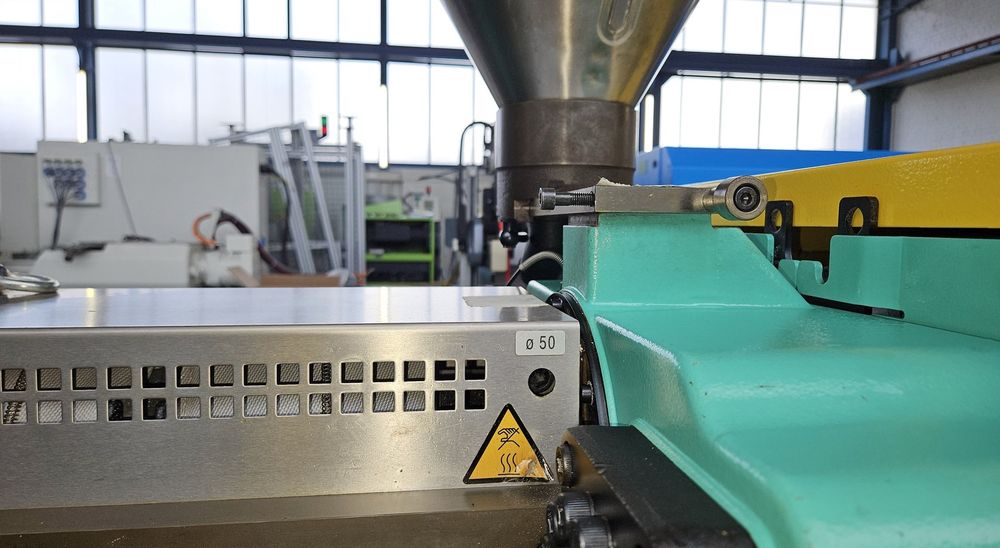

Screw diameter: 50 mm
Crank volume: 392 cc
Injection pressure: 2,000 bar
Screw length: 20 l/d
Screw stroke: 200 mm
Screw speed: 60 rpm
Screw torque: 1000 N
Injection flow to atmosphere: 656 g/s PS
Number of heating zones: 8
Nozzle travel: 400 mm

Dimensions & Weight
Machine dimensions L x W x H: 5.94 m x 2 m x 2.21 m
Total weight: 8300 kg

Equipment
German screen text
Leveling elements

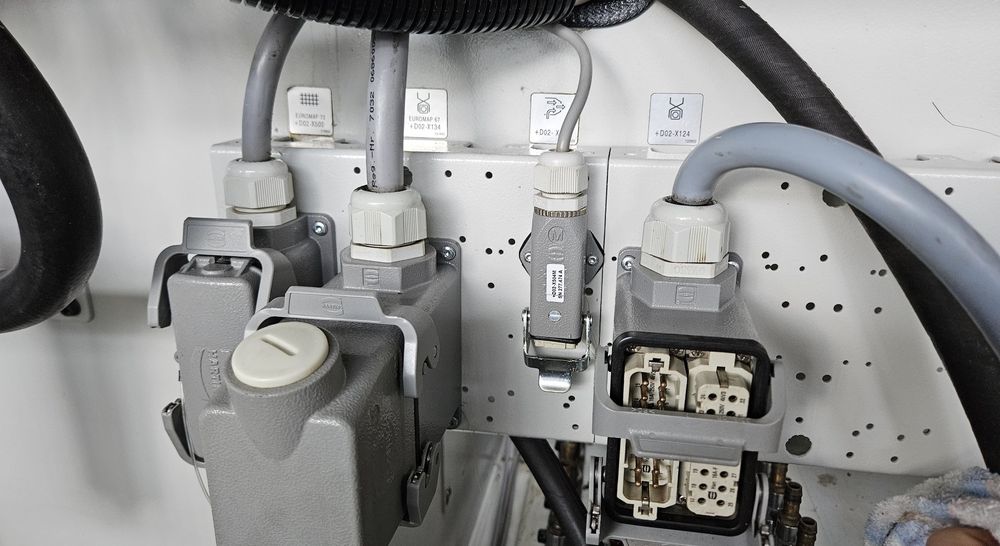

EUROMAP 67 handling interface
EUROMAP 73 interface
12 mold heaters
