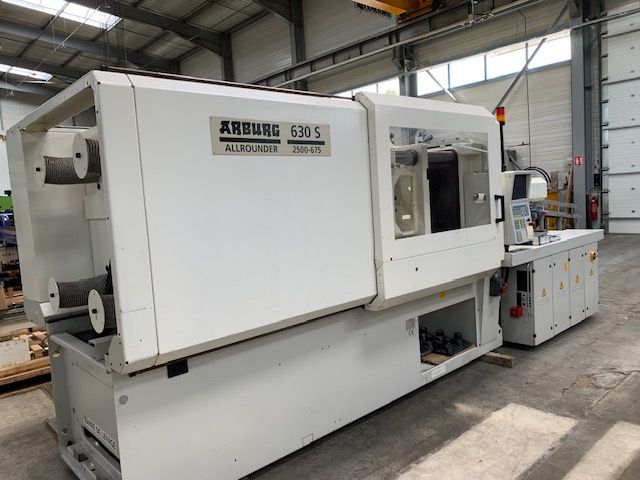

Arburg 630 S 675 250 T
Ref :
2717602-6-MT
Condition :
Used
Manufacturer :
Arburg
Model :
630 S 675
Capacity :
250 T
Year(s) :
2004
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Injection Unit
Screw Diameter: 55 mm
Calculated Injection Volume: 427 cm3
Length/Diameter Ratio: 18 L/D
Material Pressure: 1720 bar
Clamping Unit
Clamping Force: 2500 kN
Opening Stroke: 600 mm
Minimum Mold Thickness: 300 mm
Maximum Distance Between Platens: 1300 mm
Passage Between Columns: 630 x 630 mm
Plate Dimensions: 900 x 900 mm
General
Heating Power: 45 kW
Total Installed Power: 61 kW
Oil Quantity: 320 L
Weight: 13,400 kg
Other
Equipment: 8 integrated mold heating zones,
EUROMAP 12 robot socket, 2 hydraulic cores, 2 core controls
Commissioning: 2004
Tonnage: 250
