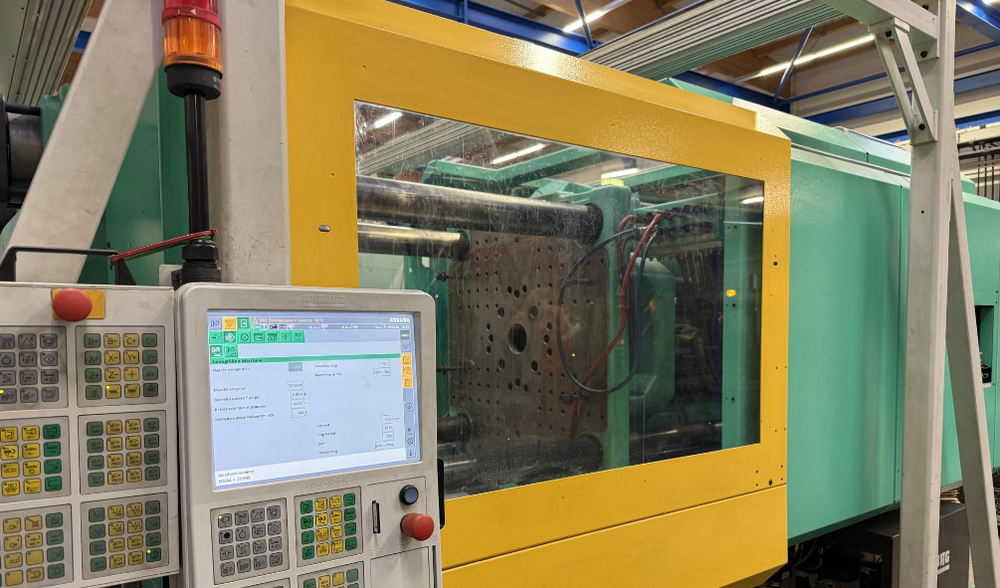

Arburg 720 S 3200-800 320 T

Clamping force: 320 t
Clamping force: 3200 kN
Opening force: 130 kN
Opening force (boosted): 100 / 800 kN
Opening stroke: 700 mm
Mould height: 300–700 mm
Distance between platens: 1000–1400 mm
Platen size: 1040 × 1040 mm
Max mould weight (per half): 3600 kg
Ejector force: 100 kN
Ejector stroke: 250 mm
Screw diameter: 50 mm
Shot weight: 359 g
Distance between tie bars V: 720 mm
Distance between tie bars H: 720 mm
Shot volume: 392 cm3
Pump drive power: 45 / 55 / 55 kW
Dry cycle time: 3.5–504 s
Total installed power: 70.5 / 89 / 96 kW
Working hours: 51814 h
Type: Horizontal
Drive: Hydraulic
