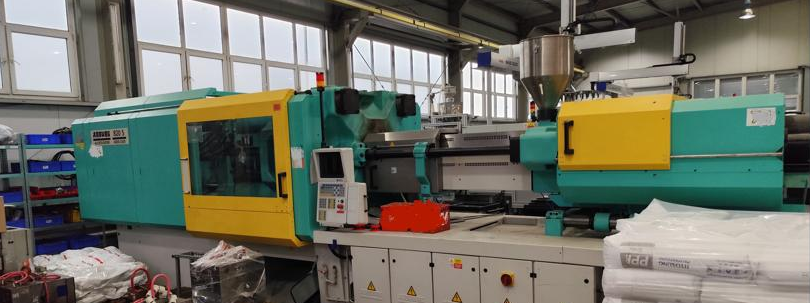

Arburg 820 S 4000-3200 400 T
Ref :
2749173-6-AW
Condition :
Used
Manufacturer :
Arburg
Model :
820 S 4000-3200
Capacity :
400 T
Year(s) :
2005
Quantity :
1
Location :
Seller or machines location:
EUROPE (Central and Eastern)
EUROPE (Central and Eastern)
Last check :
15 Oct. 2025
Clamping Force: 400 ton
Screw Diameter: 90 mm
Shot Weight: 1860 g
Injection Volume: 2036 cm³
Injection Pressure: 1580 bar
Opening Stroke: 700 mm
Distance Between Tie Bars: 820 × 820 mm
Mould Height Min/Max: 350 – 850 mm
Opening Width: 1050 – 1550 mm
Platen Size (h × v): 1171 × 1171 mm
Machine Dimensions (L × W × H): 8,3 × 2,3 × 2,4 m
Machine Weight: 22 500 kg
Working hours : 79.000
Machine is with robot Multilift and conveyor .
