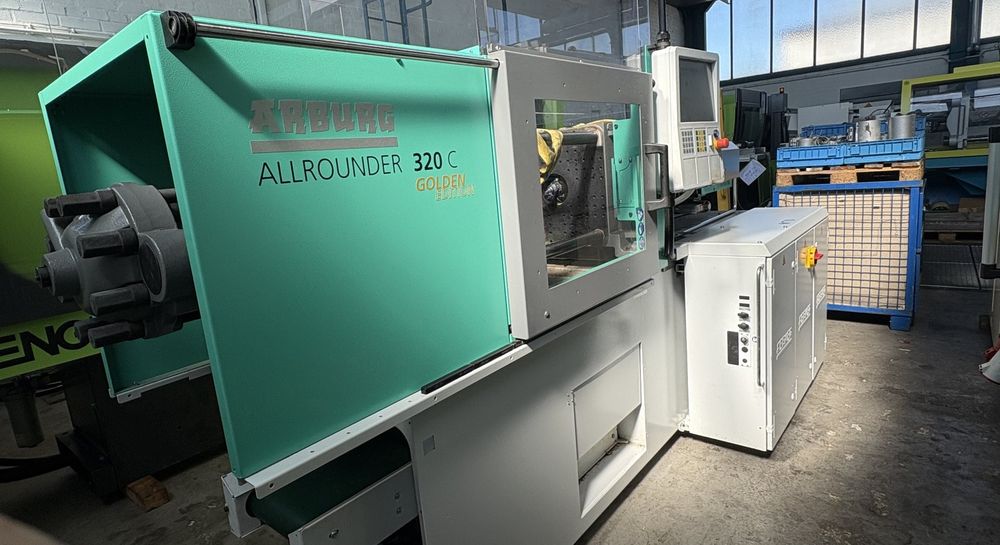

Arburg Allrounder 320 C 500-170 50 T

Control: Golden Edition
Year of manufacture: 2021

Technical specifications, clamping side
Clamping force: 500 kN
Tie bar dimensions h x v: 320 x 320 mm
Plate size h x v: 446 x 446 mm
Min. installation height: 200 mm
Max. platen spacing: 550 mm
Opening stroke: 250 mm
Rotary table size D: 900 mm
Ejector stroke: 125 mm
Ejector force: 30 kN
Centering of movable platen D: 125 mm
Centering of fixed platen D: 125 mm
Mold weight: 320 kg

Technical specifications, injection side
Screw diameter: 35 mm
Displacement: 115 cc
Injection pressure: 1470 bar
Screw length: 17 l/d
Screw stroke: 120 mm
Screw torque: 290 N
Injection flow to the outside: 132 g/s PS
Number of heating zones: 5
Nozzle travel: 210 mm

Dimensions & Weight
Machine dimensions LxWxH: 3.6 m x 1.45 m x 2.004 m
Total weight: 2480 kg

Equipment
3x temperature control points for hot runner
Screen text in German
CEE socket 16 A
Compact Flash drive
1x air valve
Machine including conveyor belt
Leveling elements
Highly wear-resistant and corrosion-resistant screw
EUROMAP 65 interface, operator authorization
Interface for ejector plate safety device
Interface for coloring device
USB interface
Schuko socket 10 A
