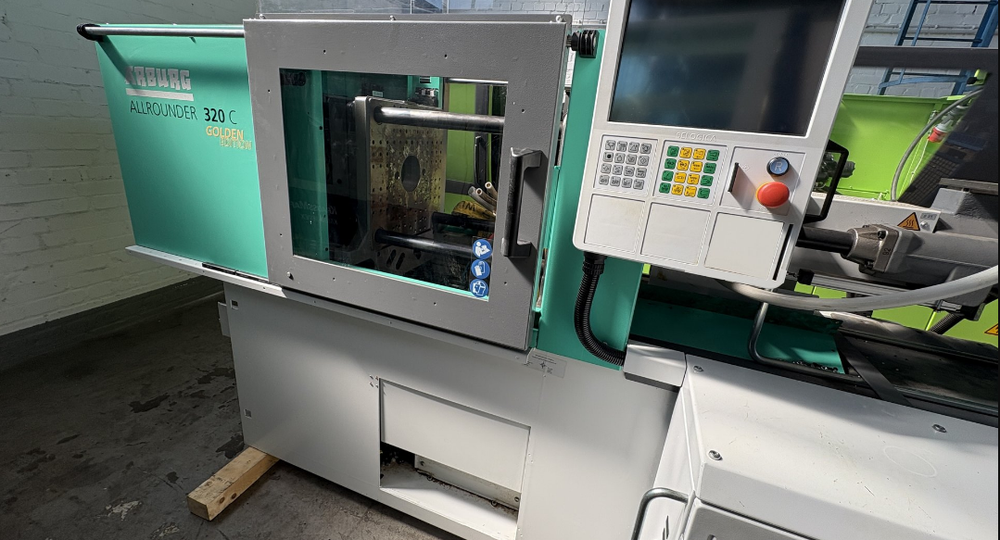

Arburg Allrounder 320C 500-170 50 T

Control System: Golden Edition
Year of Manufacture: 2021

Technical Data - Clamping Side
Clamping Force: 500 kN
Tie Bar Dimensions (H x V): 320 x 320 mm
Plate Size (H x V): 446 x 446 mm
Minimum Installation Height: 200 mm
Maximum Platen Distance: 550 mm
Opening Stroke: 350 mm
Ejector Stroke: 125 mm
Ejector Force: 30 kN
Centering of Movable Platen D: 125 mm
Centering of Fixed Platen D: 125 mm
Mold Weight: 320 kg

Technical Data - Injection Side
Screw Diameter: 35 mm
Displacement: 115 cc
Injection Pressure: 1470 bar
Screw Length: 17 l/d
Screw Stroke: 120 mm
Screw Torque: 290 N
Injection Flow to the outside: 132 g/s PS
Number of heating zones: 5
Nozzle travel: 210 mm

Dimensions & Weight
Machine dimensions LxWxH: 3.6 m x 1.45 m x 2.004 m
Total weight: 2480 kg

Equipment
3x temperature control points for hot runner
Screen text in German
CEE socket 16 A
CEE socket 16 A
Compact Flash drive
1x air valve
Machine including conveyor belt
Leveling elements
Highly wear-resistant and corrosion-resistant screw
EUROMAP 65 interface
Operator authorization interface
Interface for ejector plate safety device
USB interface
Schuko socket 10 A
