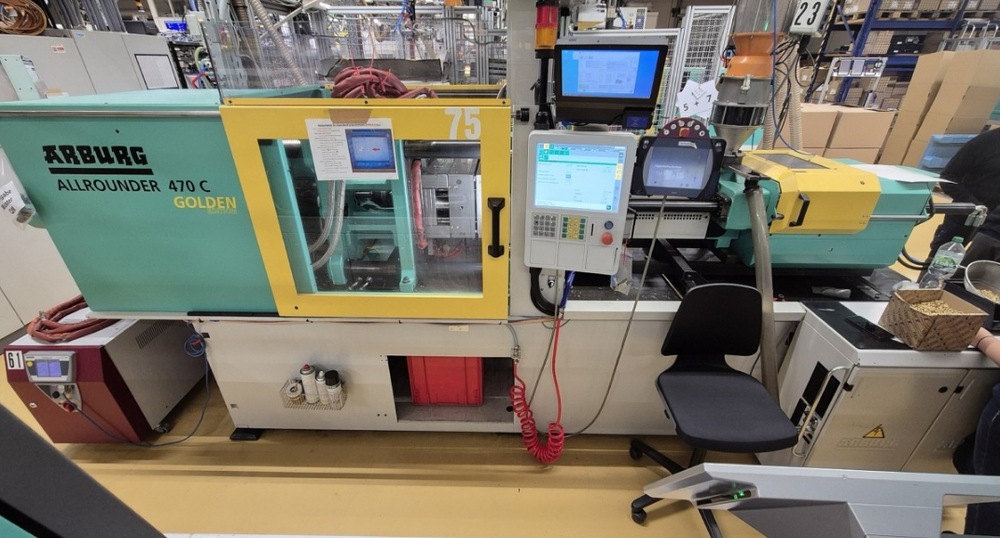

Arburg Allrounder 470C-1500-400 GE 150 T

Horizontal injection molding machine,
Type: Allrounder 470C 1500-400 GE
GOLDEN EDITION

Injection unit:
- Screw diameter: 35 mm (wear-resistant)
- Centering ring diameter: 125 mm
- Max. shot weight: 141 g (PS)
- Injection pressure: 2,500 bar

Clamping unit:
- Clamping force: 1500 kN
- Max. opening stroke: 750 mm
- Mold installation height: min. 250 mm
- Mold clamping plates: 470 x 470 mm
- Operating hours approx.: 79,000 h (still in use)
- Operating voltage: 3x 400 V, 50 Hz
- Rated current motor/heating: 75 / 40 A
- Total current: 115 A
- Total power consumption: 65 kW
- Core pulls: 1x
- Hot runner control zones: 6x
- Temperature control unit interfaces: 6x (20 mA)
- Approval for high temperature up to 450°C
- Communication card for ProSeS interface available
(OPC-UA)
- Robot interface available (EUROMAP 67)

Technical precision parts were manufactured on this machine.
It has been regularly serviced and calibrated.

Without accessories such as peripheral devices, conveyors, robots, etc.
and without material hopper.
