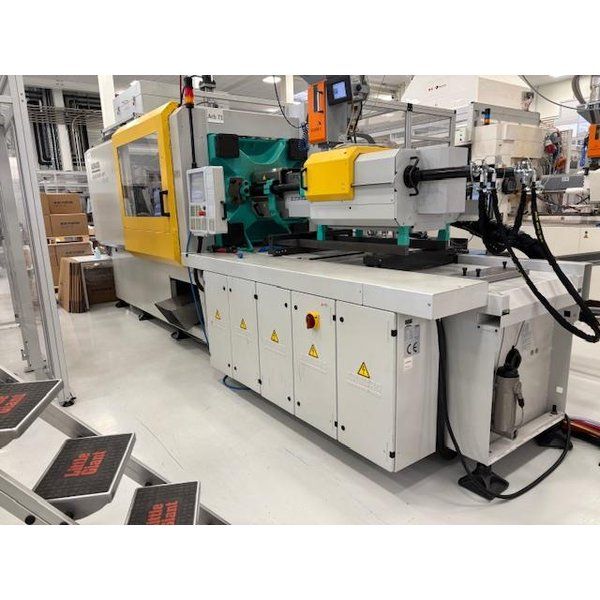

Arburg Allrounder 630 S 2500-800 250 T

Steering: Selogica
Year of construction: 2012
Operating hours: 43331 hours

Technical data closing side
Closing force: 2500 kN
Holmass hxv: 630 x 630 mm
Plate size hxv: 900 x 900 mm
Minimum installation height: 300 mm
Maximum installation height: 700 mm
Maximum plate spacing: 1300 mm
Opening path: 600 mm
Ejector stroke: 90 mm
Ejector force: 225 kN
Centering movable plate D: 160 mm
Centering fixed plate D: 160 mm
Tool weight: 3800 kg

Technical data spray side
Screw diameter: 45 mm
Displacement: 318 cc
Injection pressure: 2470 bear
Screw length: 22 l/d
Screw stroke: 200 mm
Screw speed: 60 min
Worm torque: 1000 N
Plasticizing stream: 242 g/s hp
Injection flow to the outside: 291 g/s hp
Number of heating zones: 7
Nozzle path: 400 mm

Dimensions & Weight
Machine dimensions LxWxH: 6.12 m x 2.25 m x 2.21 m
Total weight: 12200 KG

equipment
Screen text German
Core pull hydraulic 2x
Machine including conveyor belt
Machine including handling
Machine including protective housing
Leveling elements

Technical data handling
Machine type: Linear robot
Make: Arburg
Steering: Multilift
Year of construction: 2012
X-axis: 400 mm
Z-axis: 1400 mm
Rotation axis C: 90 °
Total weight: 450 kg
