Arcoma Medstone Elite C-Arm Table

ARCOMA MEDSTONE ELITE C-Arm Table Pain Management and
Vascular with Flotation

Included:
Hand Switch
Foot Control
Arm Rest

Description:

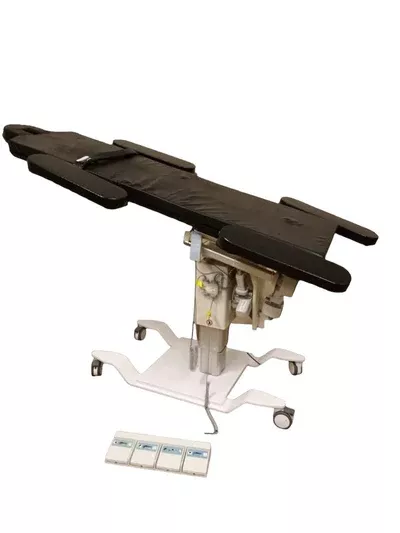

Medstone Elite Mobile C-Arm Patient Management Table is designed for Pain Management and Vascular Procedures.

The Elite series of imaging tables are designed for high patient throughput
utilizing the highest quality components and designed for
ease-of-use by the medical staff with patient comfort in mind.

The tabletop has been designed to give maximum unobstructed imaging
allowing 360° rotation radiation-free coverage around the longitudinal axis
of the carbon fiber tabletop which makes it ideal for 3D imaging studies.

The tabletop pad is also designed to give the patient maximum comfort and
is manufactured utilizing patient form-fitting Visco/Memory "Sofcare"
High Density foam.

Features:
Lightweight and easy to maneuver
Carbon fiber tabletop: 22" W x 82" L with narrow head profile, facial access cutout and chamfered edges
Unobstructed metal free imaging length: 58"
Radiolucent pad
Wired hand control
Patient restraints (3)
3 year parts warranty, 1 year labor warranty
Patient weight capacity: 500 lbs
Country of Origin: United States of America
5-Way with Lateral Travel TM-5 (shown) Features:

Motor driven lateral travel (side to side): 8" (4" right/4" left)
Motor driven longitudinal travel (head to foot): 16"
Motor driven trendelenburg tilt: ±15°
Motor driven lateral tilt: ±15°
Motor driven elevating travel (300mm lift standard): 26" min. height -
38" max. height
Electric Outlet Requirements: 110v
Power Cord: 8' Length
Table weighs approximately 650 lbs.
