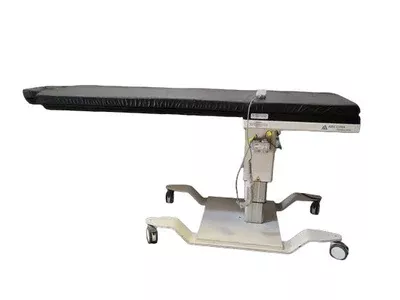

Arcoma Medstone Elite C-Arm

Included:
Hand Switch
Medstone Elite Mobile C-Arm Patient Management Table is
designed for Pain Management and Vascular Procedures.

The Elite series of imaging tables are designed for high patient throughput utilizing
the highest quality components and designed for ease-of-use by the medical staff
with patient comfort in mind.

The tabletop has been designed to give maximum unobstructed imaging allowing
360° rotation radiation-free coverage around the longitudinal axis of
the carbon fiber tabletop which makes it ideal for 3D imaging studies.

The tabletop pad is also designed to give the patient maximum comfort and is
manufactured utilizing patient form-fitting Visco/Memory "Sofcare" High Density foam.

Features
Lightweight and easy to maneuver
Carbon fiber tabletop: 22" W x 82" L with narrow head profile,
facial access cutout and chamfered edges
Unobstructed metal free imaging length: 58"
Radiolucent pad
Wired hand control
Patient restraints (3)
3 year parts warranty, 1 year labor warranty
Patient weight capacity: 500 lbs
Country of Origin: United States of America
5-Way with Lateral Travel TM-5 (shown) Features
Motor driven trendelenburg tilt: ±15°
Motor driven lateral tilt: ±15°
Motor driven elevating travel (300mm lift standard): 26" min. height - 38" max. height
Electric Outlet Requirements: 110v
Power Cord: 8' Length
Table weighs approximately 650 lbs.
