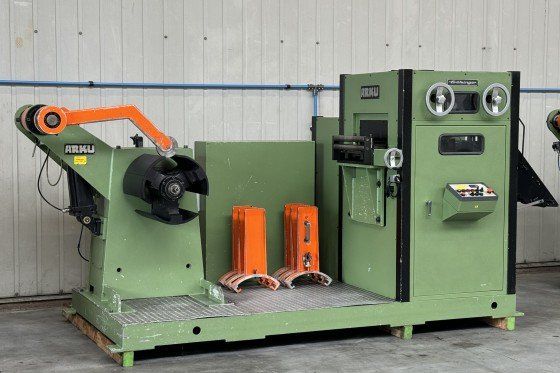

Arku RM 3035 + AH 2000 Decoiler work load 2000 kg
Ref :
2756729-3-GO
Condition :
Used
Manufacturer :
Arku
Model :
RM 3035 + AH 2000
Capacity :
Decoiler work load 2000 kg
Year(s) :
1995
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Decoiler maximum width 350 mm
Decoiler clamping area coil internal 470–530 mm
Decoiler coil diameter 1500 mm
Straightener width 350 mm
Straightener roll diameter 30 mm
Straightener number of rolls 9 units
Straightener infeed rolls 2 units
Infeed roll diameter 90 mm
Working speed 40 m/min
Maximum thickness 6 mm at 240 N/mm²
Maximum thickness 5 mm at 400 N/mm²
Machine length 3200 mm
Machine width 1500 mm
Machine height 2200 mm
Machine weight 3700 kg
