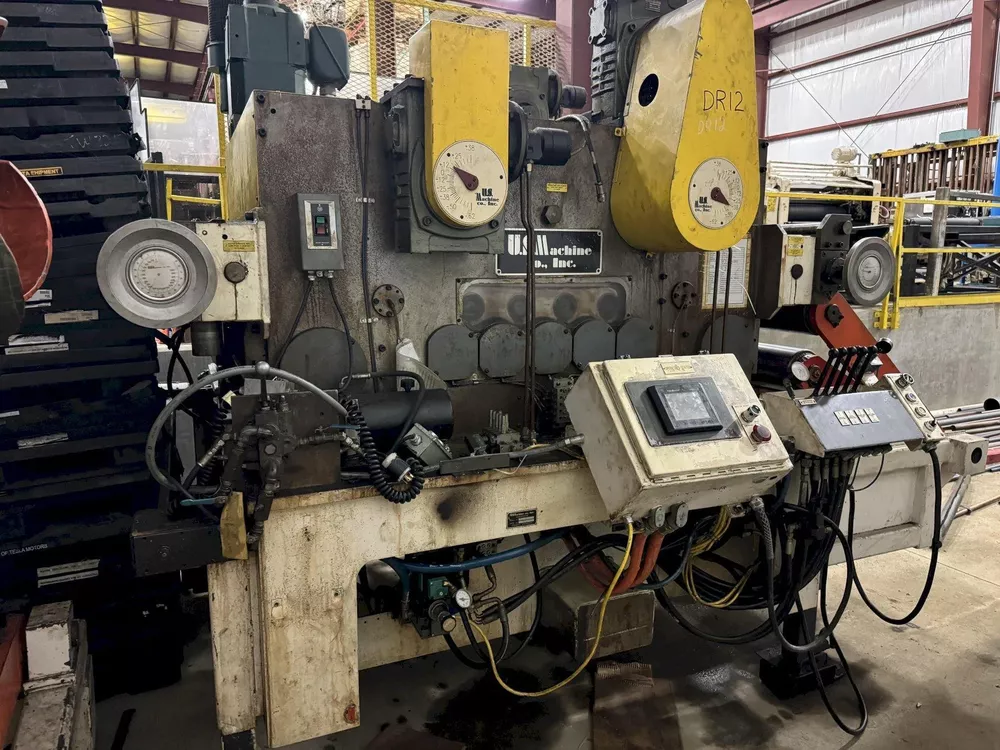

US MACHINE M24 30,000 LB X 42" X .312" 30,000 lb

Ref : 2785981-3-AW

Condition : Used

Manufacturer : -

Model : US MACHINE M24 30,000 LB X 42" X .312"

Capacity : 30,000 lb

Year(s) : -

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

Coil weight capacity: 30,000 lb
Coil OD: 30″ min – 72″ max
Coil ID: 20″ – 24″
Coil ID expansion: 19-1/2″ – 24-1/2″
Stock width: 6″ min – 42″ max
Cold rolled steel capacity: .030″ – .075″ x 42″ wide
Hot rolled steel capacity: .075″ – .312″ x 42″ wide
Hot rolled steel capacity: .510″ x 18″ wide
HSLA steel capacity: .38″ x 30″ wide
Accuracy: ± .010″
Number of rolls: 9 (4 over 5)
Passline adjustment: 48″ ± 4″
Feed roll diameter: 8″
Entry and exit pinch rolls
Pinch roll diameter: 12″
Hydraulic side guide adjustment
AC vector drive
Voltage: 440 V / 3 phase / 60 Hz
Main motor: 150 HP
