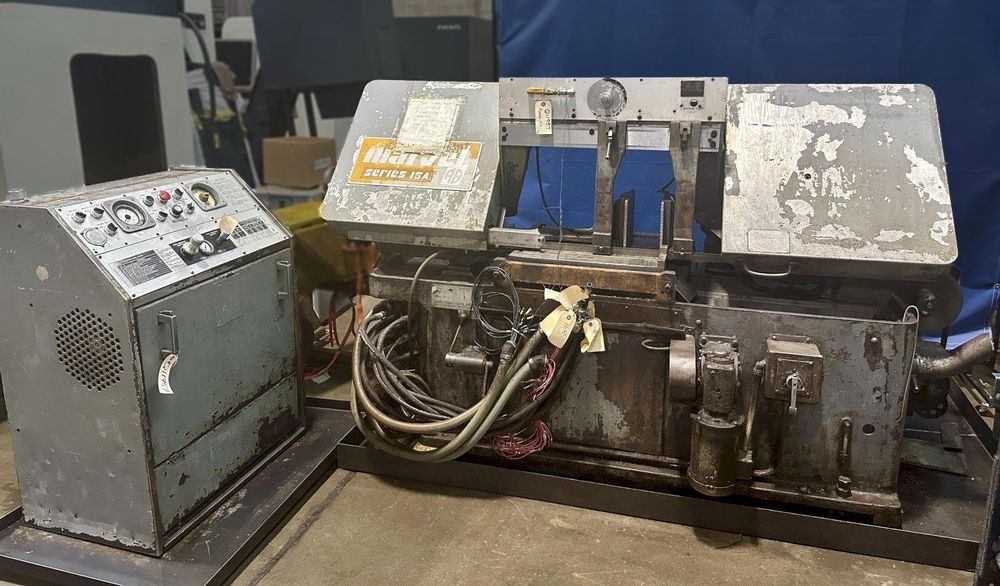

Armstrong, Marvel Armstrong-Blum Marvel 15A5/M8 HORIZONTAL BAND SAW SemiAutomatic

Armstrong-Blum Marvel 15A5/M8


Nominal Capacity: 15" x 20"
Blade Speeds, Infinitely Variable: 55 – 400 FPM
Hydraulic Feed, Compensation, Infinitely Variable: 0 – 200 LBS
Shuttle Type Automatic Bar Feed Length: 120"
Feed Stroke Multi-Cycle (per Cycle): 0 – 24"
Max Bar Feed Load Capacity: 7,000 LBS
Blade Drive Horsepower: 5 HP
Hydraulic Pump Horsepower: 2 HP
Blade Length: 15'6"
Max Blade Width: 1.25"
Blade Thickness: 0.035"
Vise: Hydraulic
Electrics: 220/440/3/60
Approximate Machine Dimensions: 132" x 82"
Approximate Machine Height: 74"
Approximate Machine Weight: 7,500 LBS

Equipped With (subject to buyer verification):
Automatic Stock Infeed w/ Programmable Lengths
10' Automatic Conveyor Feed
40" Heavy Duty Discharge Table
(2) Automatic Hydraulic Vises
Micrometer Dial Setting
Quick Adjustable Blade Guide Arms
Carbide Faced Blade Guides
Work Height Selector
Hydraulic Down Feed Compensator Controls
Coolant System
Automatic Chip Auger
