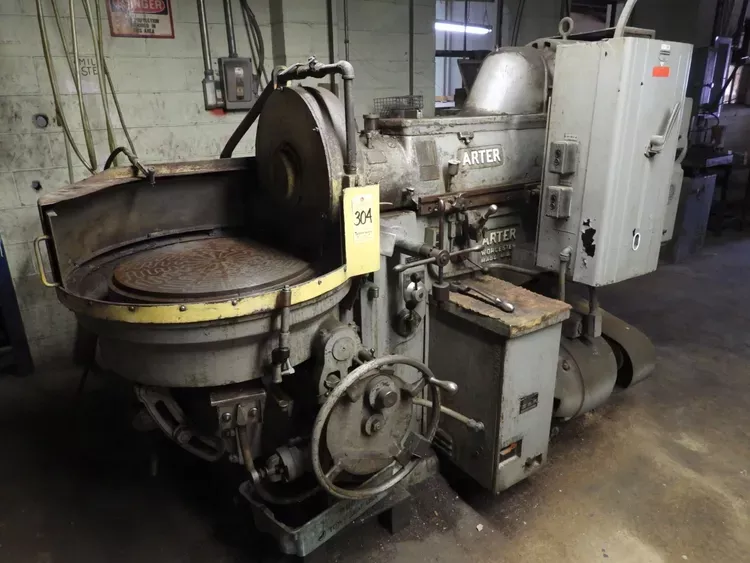

Arter B-24

Horizontal-Spindle Rotary Surface Grinder
Chuck Size: 25"
Horizontal/Vertical Orientation: Horizontal
Swing: 30"
Height Under Wheel: 8"
Grinding Wheel Width: 2"
Grinding Wheel Diameter: 20"
Grinding Wheel Hole Diameter: 12"
Maximum Convex Table Angle: 10°
Maximum Concave Table Angle: 10°
Maximum Grinding Wheel Speed: 950 RPM
Spindle Motor: 10 HP / 1750 RPM
Hydraulic Motor: 7.5 HP / 1150 RPM
Electrical System: 220–440 V / 3 / 60 Hz
Floor Space Required: 8'0" x 7'3"
Machine Weight: 9,500 lbs
Equipped With: Horizontal-Spindle Machine Design
Electro-Magnetic Chuck with Rectifier & Neutrol
Ram-Mounted Grinding Motor Drive
