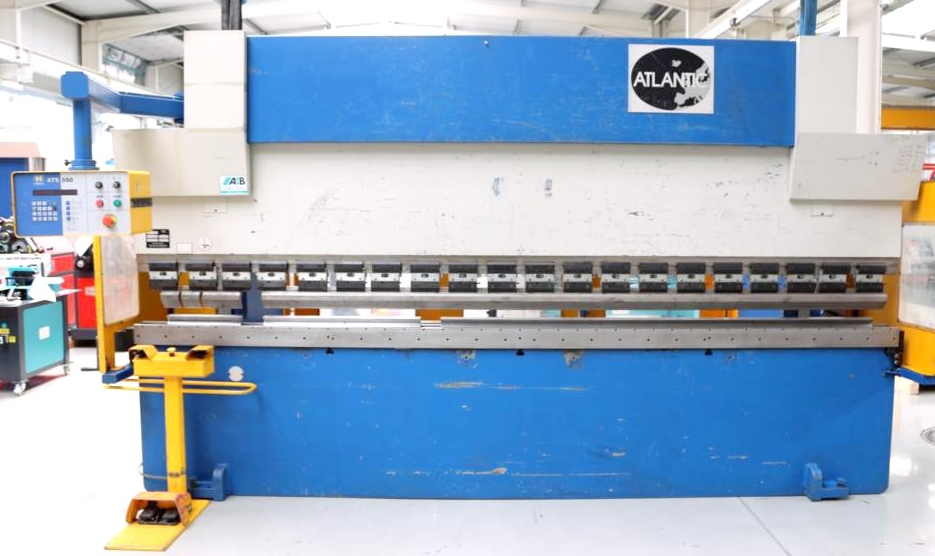

Atlantic HPES 40.150 150 t

Press force: 150 t
Bending length: 4100 mm
Distance between columns: 3150 mm
Stroke of upper beam: 200 mm
Throat depth: 250 mm
Daylight: 400 mm
Working feed: 10.0 mm/sec
Return speed: 100 mm/sec
Hydraulic pressure: 330 bar
Control type: ATS 550 (NC)
Maximum working height: 915 mm
Power requirement: 15.0 kW
Machine dimensions (L x W x H): 4400 x 1700 x 2750 mm
Machine weight: 10,400 kg
NC-controlled hydraulic press brake
NC-controlled backgauge positioning (X axis)
NC-controlled depth adjustment (Y1 + Y2 axes)
Program memory capacity: 200 programs / 400 sets
Pivoting control panel (front left)
Emergency stop button
Manual table crowning with analog display
Split upper tool set (not complete)
AMADA tool holder – SYSTEM A
Upper wedge crowning holder
Split lower tool set (not complete)
Reversible 4V die (16/22/35/50 mm)
2 swinging side guards
Sliding rear guard
Freely movable dual hand/foot control
Operating instructions included (PDF)
