Atlantic HPES 40.150 150 t

Press Force – 150 t
Chamfer Length – 4100 mm
Distance Between Columns – 3150 mm
Stroke of Upper Beam – 200 mm
Throat – 250 mm
Daylight – 400 mm
Working Feed – 10.0 mm/sec
Return Speed – 100 mm/sec
Operating Pressure – 330 bar
Control – ATS 550 NC
Maximum Work Height – 915 mm
Total Power Requirement – 15.0 kW
Weight – 10400 kg
Machine Dimensions L-W-H – 4400 x 1700 x 2750 mm
NC-controlled hydraulic press brake
Positioning of backgauge (X axis)
Positioning of depth adjustment (Y1 + Y2 axes)
Programmable memory – max. 200 programs, max. 400 sets
Pivoting control panel, front left
Emergency stop button
NC electro-motorized continuously variable depth adjustment (Y1 + Y2 axes)
NC electro-motorized backgauge (X axis)
2 manually adjustable stop fingers
Manual table crowning with analog value display

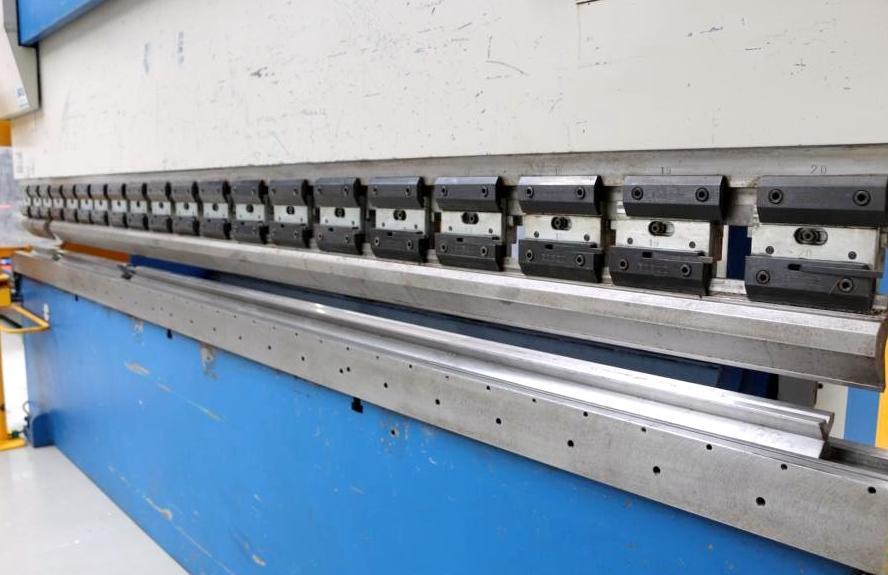

Split upper tool set (not complete)
AMADA tool holder – SYSTEM A
Holder with upper wedge crowning
Split lower tool set (not complete)
Reversible – 4V opening (16/22/35/50 mm)
2x side guards (swinging doors)
Rear guard (sliding door)
Freely movable 2-hand/foot control
Operating instructions (PDF)
