Automatic, Gala SPHERO 220 underwater pelletizing system

Automatik / Gala model SPHERO 220 underwater pelletizing system.
Unit is rated at up to 22,000 pounds per hour. – New 2010.
460V/3ph/60Hz operation.

The system consists of the following components:
A) Hydraulically actuated start up value with an 11 kW hydraulic pump.
B) Liquid heated die plate with a Sterlco model M2B6017-L, 80 kW oil heater.
C) A 60HP, 36 knife cutter head with a pneumatically adjustable knife shaft.
D) A cutting chamber with a tangential water supply and pellet drain.
E) Movitech model VSF90/4-2B water tempering system with a FUNKE
model plate type heat exchanger.

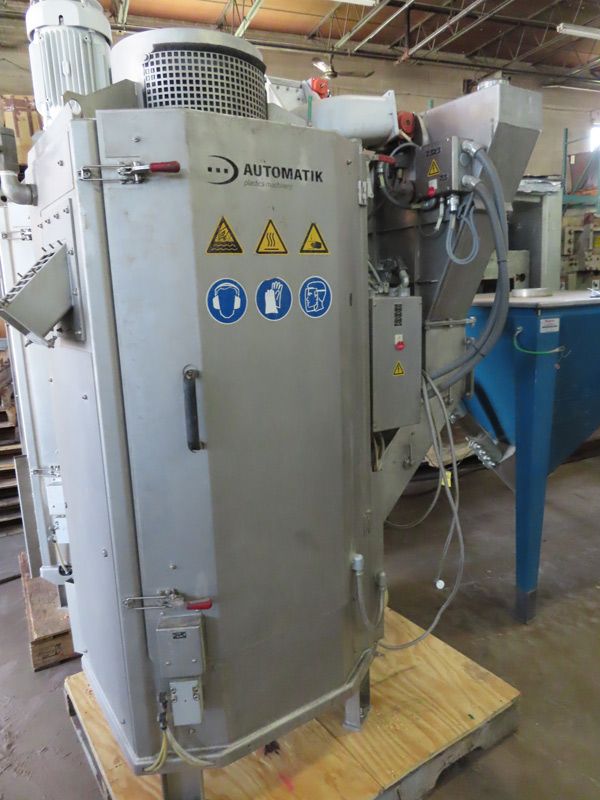

F) A 7.5HP spin dryer with an agglomerate catcher and
a 1.5HP blower motor (missing the motor).
G) A free-standing control panel.
H) A support structure for the cutter, cutting chamber,
hydraulic pump, hydraulic vale, and operator controls.

Last used on EPS micro beads.
