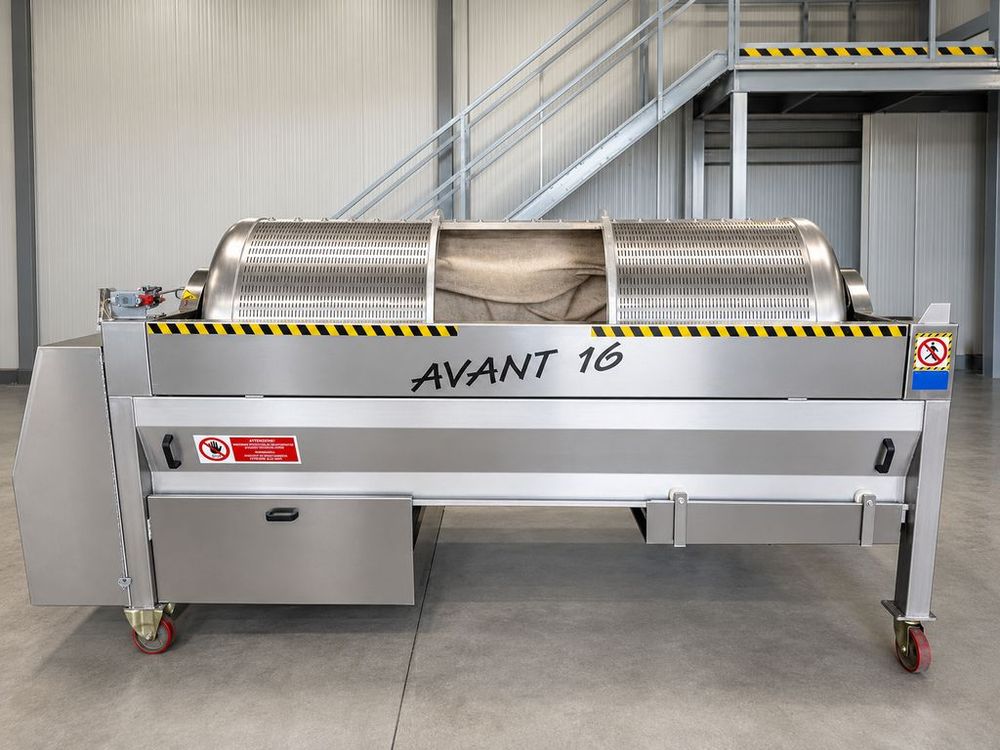

AVANT 16 MEMBRANE PRESS

CAPACITY HL 16, OPEN CYLINDER
Entirely constructed in AISI 304 stainless steel
Must collection tray
Door with manual opening and closing for grape marc discharge
Axial loading device positioned on the head axis, loading by means of manual stainless steel valve, diameter 100 mm
Diametral PVC membrane
Built-in Becker compressor, dry operation, for pressure management up to 1,5 bar
Built-in turbine for low pressure and vacuum. Low pressures are managed automatically by the turbine/blower during the first pressing phases
PLC with pressing programs
Electrical control panel for program management
Total power: approx. 4.5 kW
Loading capacity: whole grapes approx. 1,000–1,400 kg; crushed grapes approx. 2,400–3,200 kg; fermented grapes approx. 1,100–1,500 kg

Complete with use and maintenance manual.
Dimensions: Length 3300 mm x Width 1200 mm x H. 1700 mm approx.
Weight: 1080 kg.
Possibility of fitting leg extensions to allow the insertion of bins for collecting exhausted grape marc.
