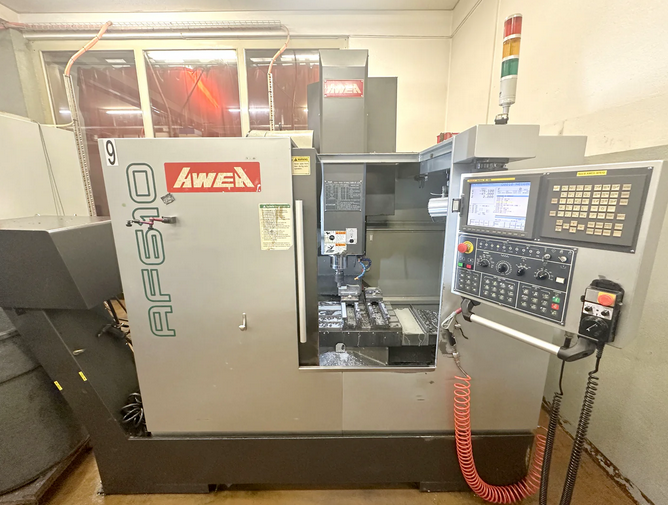

AWEA AF-610 3 Axis

X-axis travel 610 mm
Y-axis travel 420 mm
Z-axis travel 420 mm
Tool magazine 20 positions
Tool diameter max 63 mm
Tool diameter with free adjacent pockets 100 mm
Tool length 200 mm
Max tool weight 4 kg
Spindle nose ISO 40
Distance spindle nose to table 150–600 mm
Spindle speed 0–12000 rpm
Feed range 1–10000 mm/min
Spindle motor 5.5 / 7.35 kW
Total power required 24 kVA
Table length 700 mm
Table width 450 mm
Table load max 450 kg
Number of T-slots 4
T-slot width 14 mm
Coolant through spindle 25 bar
Machine weight about 3500 kg
Machine length 2600 mm
Machine width 2150 mm
Machine height 2500 mm

Features
Control FANUC Series 18i-MB
Coolant system
Chip conveyor
Electronic handwheel
Lamp
Spindle cooling
RS232 interface
Automatic central lubrication
Status light
