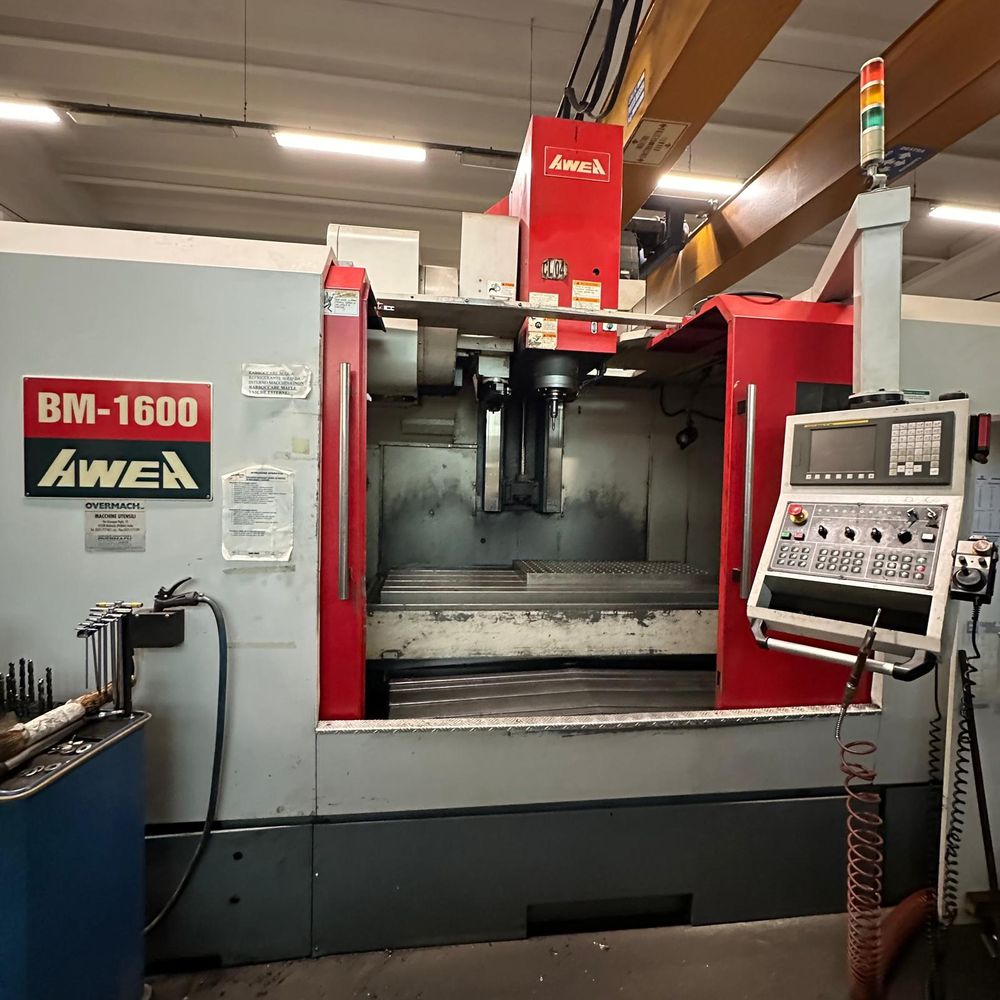

AWEA BM-1600 3 Axis

X-axis travel: 1600 mm
Y-axis travel: 800 mm
Z-axis travel: 800 mm

Rapid traverse X-axis: 20 m/min
Rapid traverse Y-axis: 20 m/min
Rapid traverse Z-axis: 18 m/min

CNC control: Fanuc 0i-MC
Chip conveyor
High-pressure coolant pump

Table size: 2000 x 800 mm
Spindle speed: 30–6000 rpm
Spindle taper: ISO 50
Spindle motor power: 15/18 kW
2-speed gearbox

Tool magazine capacity: 30 stations
Maximum tool diameter: 125 mm
Maximum tool length: 350 mm
Maximum tool weight: 15 kg

Distance spindle nose to table: 200–1000 mm
Distance spindle center to column: 820 mm
Machine weight: 16,000 kg
