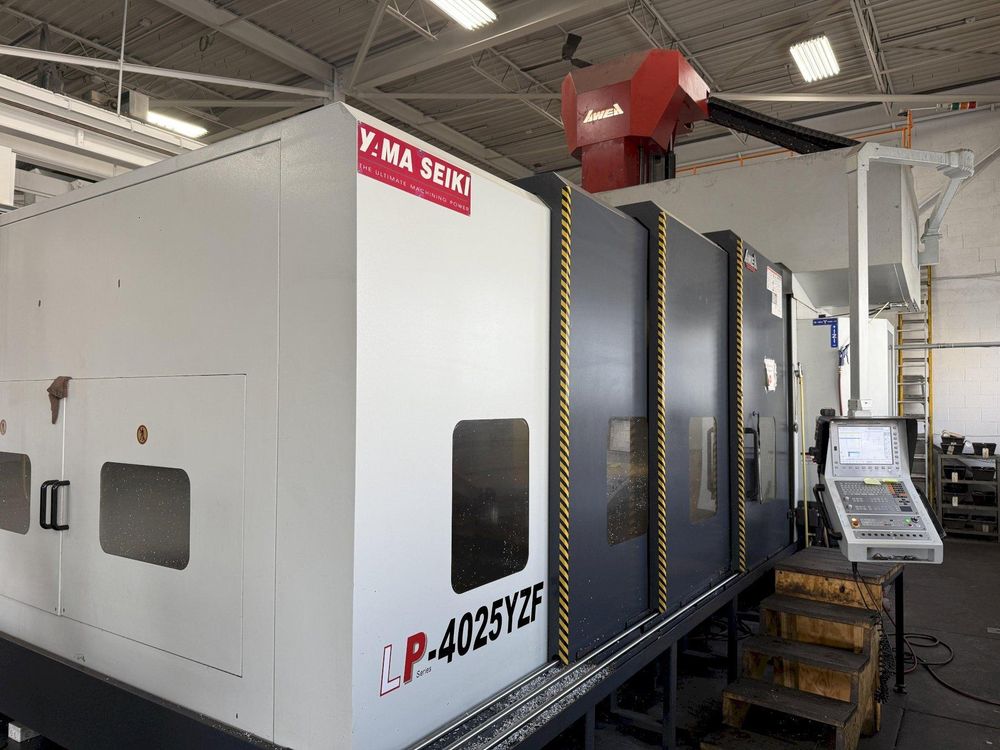

AWEA LP-4025YZF 3 Axis

X-Axis Travel: 157.48 inches
Y-Axis Travel: 129.92 inches
Z-Axis Travel: 55.11 inches
Control type: Heidenhain iTNC 630 CNC Control
Table size: 158" x 94.4"
Max table load: 33,069 lbs
Spindle taper: CAT 50 Big Plus
Spindle speed: 6,000 rpm
Spindle motor: 50 hp
ATC capacity: 120 stations
Coolant thru spindle: Yes
Machine weight: 88,184 lbs

Automatic heads & tool change
Universal Head – 4,500 RPM, 3+2 Axes, Programmable Index 1.0 degree
Extension Head – 6,000 RPM
1,000 PSI High Pressure Coolant thru Spindle
Heidenhain iTNC 630 CNC Control w/ 15” Color LCD
Spindle cooling system
Centralized automatic lubrication system
Coolant system w/ pump & tank
200 mm column riser
X/Y/Z linear scales
Roof enclosure
Oil skimmer
Chip conveyor, discharge at 1200 mm
Door interlocks for front door & ATC
Coil type chip auger
Upgrade to 500 PSI CTS Prep on Universal Head
Deublin Rotary Union “Spindle Shield” System
Keller Mist Collect Unit – ENA/S
Marposs MIDA Laser 75 295 mm kit
Marposs WRP60P/SP/CAT 50 kit
