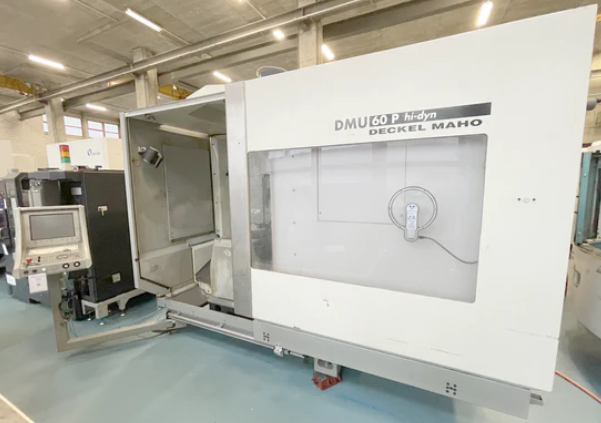

DMG DMU 60 P hy-din 5 Axis

019561
Price: CHF 45,000

X-Axis Travel: 600 mm
Y-Axis Travel: 700 mm
Z-Axis Travel: 600 mm
A-Axis: +45° / -30°
B-Axis Rotation: 360°
5 Simultaneous Axes
Control: HEIDENHAIN MillPlus / 3R-WorkMaster + 3R-WorkShopManager
High Pressure Coolant: 40 bar
Coolant Through Spindle
Renishaw Tool Setter
Lamp
Rotating Viewing Window
Switch Cabinet Air Conditioner
Spindle Speed: 18,000 rpm
Spindle Taper: SK40 DIN 69871
Feedrate X: 20–15,000 mm/min
Feedrate Y: 20–15,000 mm/min
Feedrate Z: 20–15,000 mm/min
Rapid Traverse: 40 m/min
Table Diameter: 630 mm
Table Load Capacity: 500 kg
9 T-Slots
T-Slot Width: 14H7 mm
T-Slot Spacing: 63 mm
Centering Bore: 50H6 mm
Tool Magazine: 180 Tools
Max Tool Diameter: 80 mm
Max Tool Diameter (Adjacent Pocket Empty): 160 mm
Max Tool Length: 350 mm
Max Tool Weight: 10 kg
Holding Torque A-Axis: 3866 Nm
Clamping Torque C-Axis: 6008 Nm
Maximum Torque: 2650 Nm
Maximum Workpiece Diameter: 920 mm
Maximum Workpiece Height: 1000 mm
Air Supply: 5–8 bar
Voltage: 3 × 400 V / 50 Hz
Power Requirement: 44 kVA
Noise Level: 80 dB(A)
Machine Dimensions: 7500 × 4500 × 2628 mm
Machine Weight: 7500 kg
SK40 Toolholder Set: Approx. 150 Pieces
