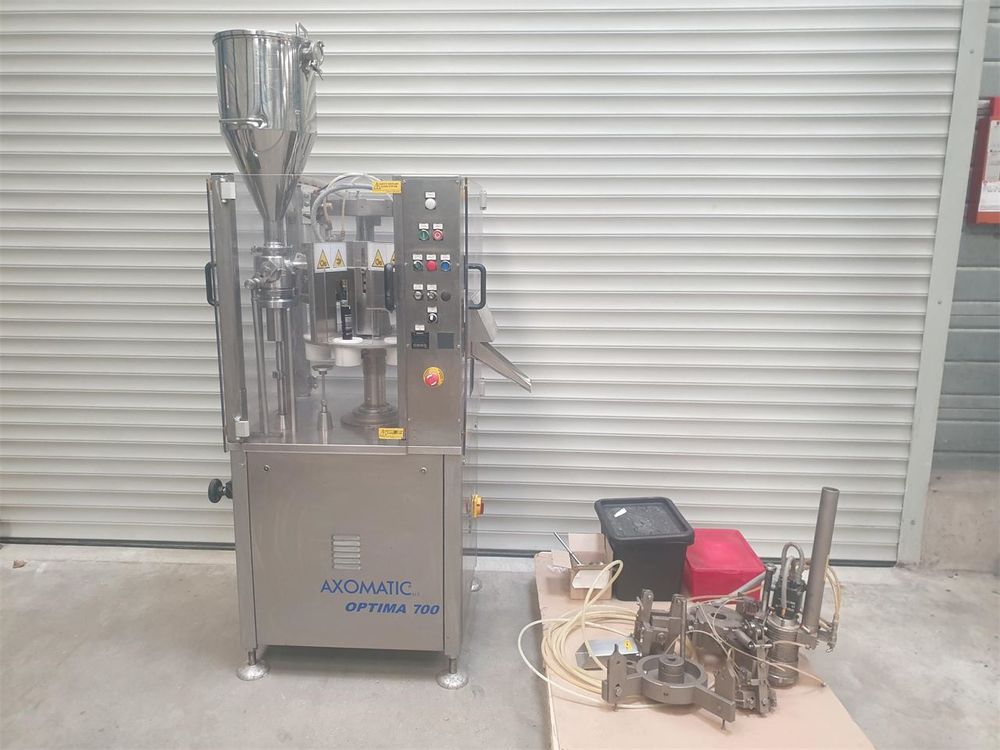

Axomatic OPTIMA 700

Filler plastic or metal tube filler
Weight : 320 kg
Dimensions : (L x W x H) 0.80 x 0.80 x 2.00 M

Equipped:
- Manual feeding of tubes into the bucket.
- Tray with 7 interchangeable buckets depending on tube dimensions, for transferring tubes to the packaging station.
- Bucket formats available with the machine: Diameter 25, 30, 35, 45, 54 mm.
- Dosing station by volumetric piston interchangeable according to the desired dosage with stainless steel rotating bushel.
- Currently equipped with 3 pistons of different volumes, from 5 ml to 250 ml.
- Tube filling station using stainless steel nozzle with drip cutter, currently several nozzle formats depending on the tube diameter type.
- Single-envelope conical hopper with a capacity of 40 liters.
- Tube heating station using a Leister heater, several formats available depending on the diameter of the tube.
- Welding station using heated jaw pliers with water circulation.
- Closing station using 1 pair of jaw pliers with the possibility of inserting characters (a complete set of characters supplied with the machine) with water circulation.
- Cooling station using air blowing.
- Station for cutting the top of the tubes for finishing. Waste collection bin.
- Station for automatic evacuation of finished tubes into a chute.
- General drive by variable speed motor drive. Protective casings with security on the doors.
- Stainless steel frame.

Maximum production: Approximately 1200 tubes/hour.
Total electrical power:
- 4 kW
- 380V
Air consumption: 6 Bars.
Water consumption: 4 liters/hour.
