B & K CUT TO LENGTH LINE

Maximum Coil Weight: 50000 lb
Maximum Material Width: 72 in
Maximum Material Thickness: 0.187 in
Line Speed: 150 fpm
Line Direction: Right to Left
Entry Turnstile: Octagon
4 C-Hook Arms
Powered Turnstile Rotation
Entry Coil Car
Above Floor L-Shaped Design
Self-Contained Hydraulics

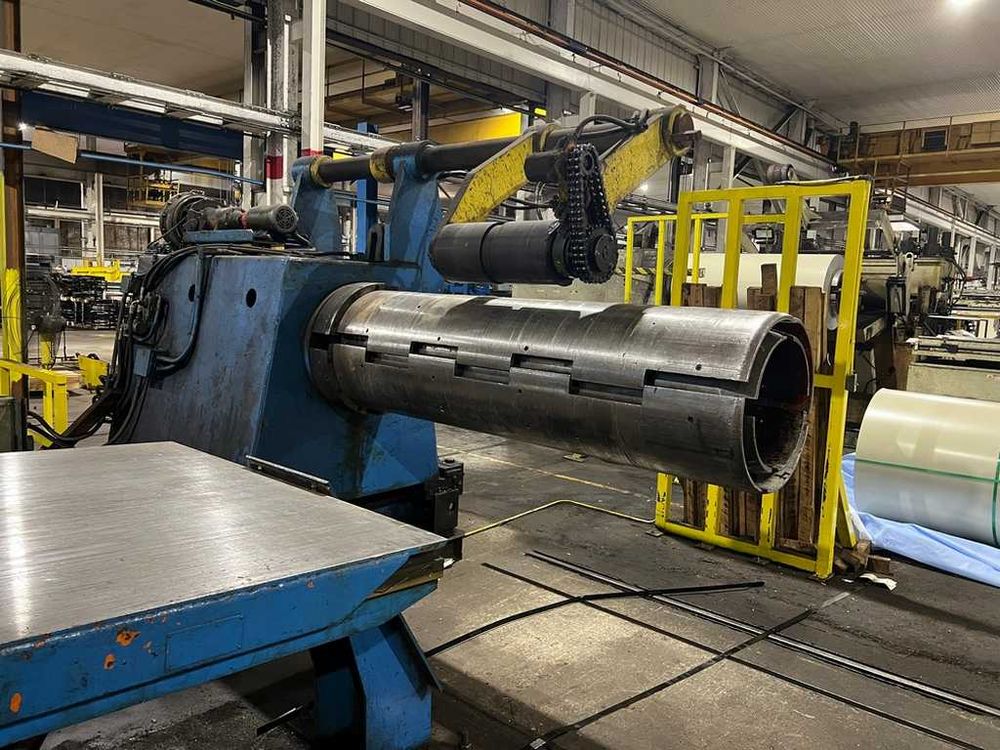

Hydraulic Expanding Pumpkin Tooth Mandrel
Coil ID: 20–24 in
Maximum Coil OD: 72 in
Threading Drive with Air Clutch
Hydraulic Slide Base
Powered Hold-Down Roll
Entry Hydraulic Peeler Table
Leveler Model: 3-17-86L-02
Entry Driven Pinch Rolls
17 Work Rolls (8 Over 9)
Work Roll Diameter: 3 in
Work Roll Width: 86 in
7 Backup Roll Flights
5 Motorized Backup Roll Flights
Leveler Motor: 200 hp DC
Leveler Motor Speed: 1750 rpm
Leveler Weight: 48000 lb
Measuring Roll
Mechanical Shear: Cincinnati Model 2508 G
Shear Capacity: 0.375 × 96 in
Shear Speed: 50 Strokes/min
Runout Belt Conveyor
Stacker
Maximum Sheet Length: 20 ft
Drop Type Design
Motorized Back Stop
Side Pallet Injector Cart
End Discharge Sheet Cart
Installed Line
