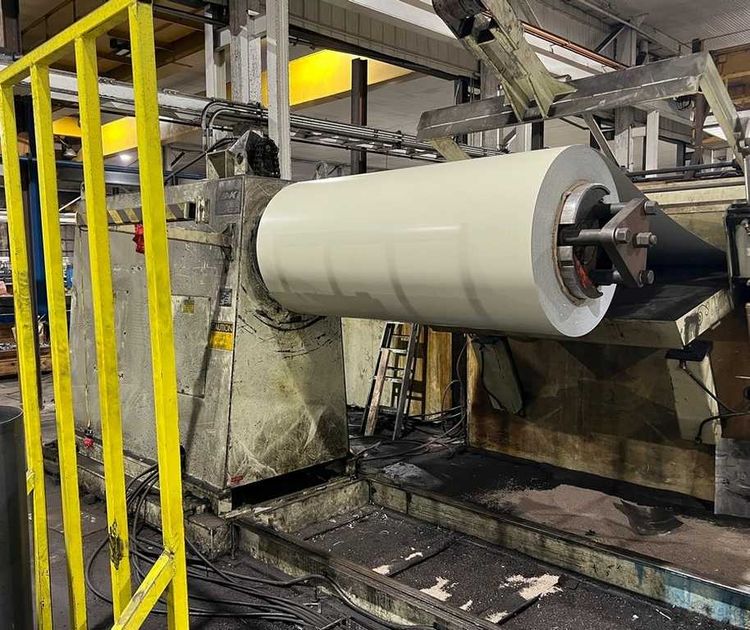

B & K CUT TO LENGTH LINE

Maximum Coil Weight: 40000 lb
Material Width: 72 in
Material Thickness: 0.021–0.135 in
Line Speed: 250 fpm
Line Direction: Left to Right
Updated Electrical System
Above Floor V-Shaped Coil Car

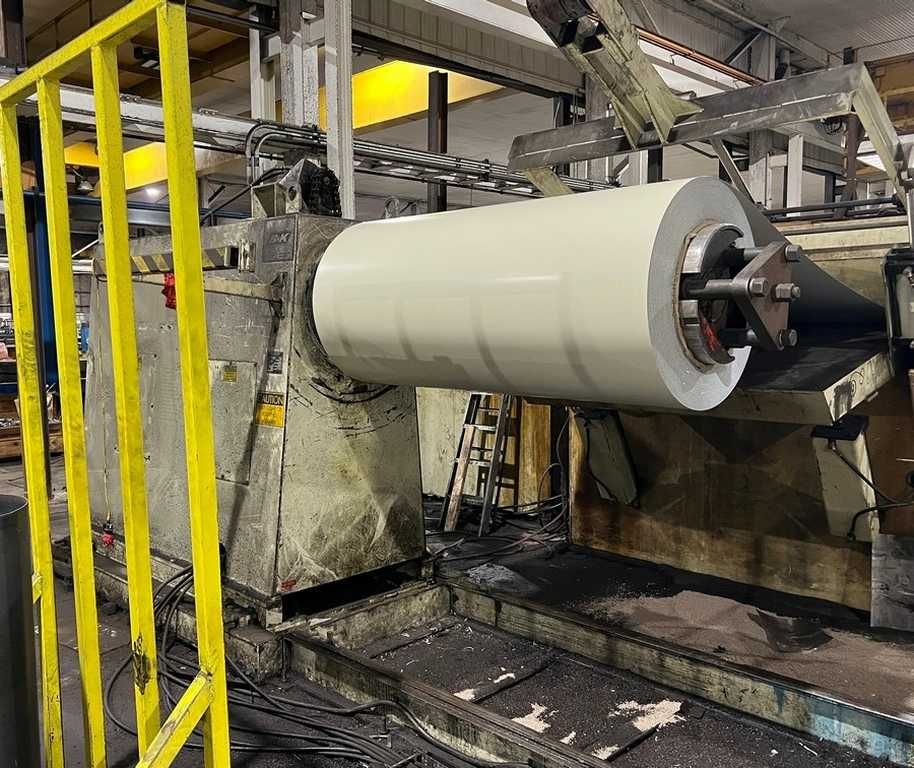

Single Mandrel Uncoiler
Coil ID: 20–24 in
Maximum Coil OD: 72 in
Hydraulic Expansion
Slide Base
Hold-Down Roll
Peeler Table
Precision Leveler
Entry Side Guides
Entry Pinch Rolls
19 Work Rolls (9 Over 10)
Work Roll Diameter: 1.75 in
Work Roll Width: 84 in
9 Backup Roll Flights
7 Motorized Backup Roll Flights
Looping Pit
Exit Pit with Cascade Rolls
4-Roll Measuring Unit
Slitter Head
Hydraulic Shear
Bundle Capacity: 10000 lb
Maximum Sheet Length: 14 ft
Auto Drop Stacker
Motorized Back Stop
Chain Drive Side Eject Pallet System
Scissor Lift Sheet Stacker
Chain Drive Bundle Ejector System
