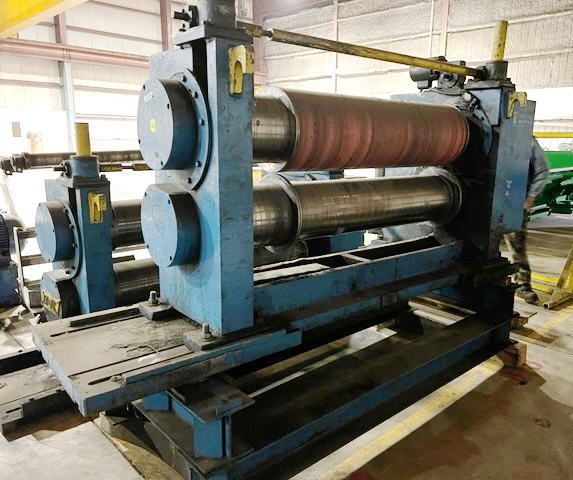

B & K Slitting Line

Coil Weight Max: 50000 lb
Incoming Strip Width: 62 in
Strip Thickness Range: 0.135 in to 0.270 in
Incoming Coil I.D.: 19 in to 26 in
Outgoing Coil I.D.: 20 in, 24 in, 28 in
Coil O.D. Max: 74 in
Number of Cuts (Mild Steel): 13 cuts of 0.250 in
Line Speed Max: 300 FPM
Electrical Power: 200 kW peak load
Electrical Supply: 460V / 60Hz / 3 Phase
Compressed Air Requirement: Minimum 80 PSI
Right-to-Left Line Direction

Entry Coil Car
44 in Wide Deck Entry Coil Car
Vertical Lift Entry Coil Car
64 in Face Uncoiler
Twin Hold Down Rolls
Peeler Blade System In/Out
Peeler Blade System Up/Down
70 in Face Hydraulic Pinch Roll Feed System
70 in Hydraulic Shear for Cropping Heads and Tails
60 in Edge Guides Hydraulic Motor Adjustable
(2) 62 in Precision Slitter Heads
10 in Diameter Arbor
(2) 36 in O.D. Scrap Winders
Oscillating Eye Scrap Winders
74 in Wide Recoiler
Separator Shaft Recoiler
Exit Coil Car
3-Arm Turnstile with Large Gripper Slots
Shimless Tooling Package
36 Knife Pieces (0.750 in Thick × 15.50 in OD)
33 Knife Pieces (0.750 in Thick × 16.00 in OD)
42 Knife Pieces (0.500 in Thick × 15.75 in OD)
85 Spacer Pieces (2.000 in Wide × 12 in OD)
55 Spacer Pieces (1.000 in Wide × 12 in OD)
36 Spacer Pieces (0.500 in Wide × 12 in OD)
34 Spacer Pieces (0.300 in Wide × 12 in OD)
25 Spacer Pieces (0.200 in Wide × 12 in OD)
45 Spacer Pieces (0.164 in Wide × 12 in OD)
30 Spacer Pieces (0.155 in Wide × 12 in OD)
44 Spacer Pieces (0.132 in Wide × 12 in OD)
36 Spacer Pieces (0.125 in Wide × 12 in OD)
52 Spacer Pieces (0.116 in Wide × 12 in OD)
40 Spacer Pieces (0.108 in Wide × 12 in OD)
50 Spacer Pieces (0.104 in Wide × 12 in OD)
50 Spacer Pieces (0.102 in Wide × 12 in OD)
40 Spacer Pieces (0.101 in Wide × 12 in OD)
40 Spacer Pieces (0.100 in Wide × 12 in OD)
18 Spacer Pieces (0.060 in Wide × 12 in OD)
20 Spacer Pieces (0.030 in Wide × 12 in OD)
Shims Range: 0.030 in to 0.005 in Thick
Overarm Tooling Included
Rubber Stripper Rings Included
