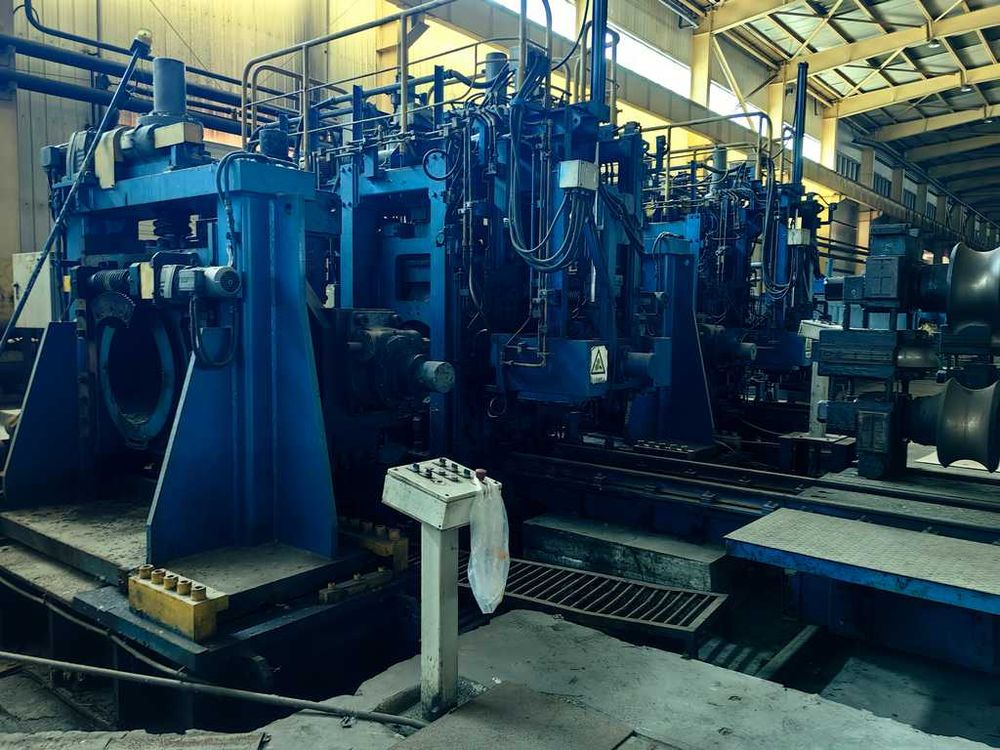

Nakata TUBE MILL Tube OD range: 114.3–339.7 mm

Ref : 2789883-3-MT

Condition : Used

Manufacturer : Nakata

Model : TUBE MILL

Short Description : Tube OD range: 114.3–339.7 mm

Year(s) : 2006

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

Wall thickness range: 3.2–14.3 mm
Max thickness for X70–X80: 10 mm
Tube length: 6–12 m
Standard: API 5L
Steel grades: H40 to N80
Steel grades: A, B, X42–X80
Slitter
Tube mill line
2 end facing machines
2 hydro tester roll sets
Hydro tester roll OD sizes: 114.3 / 139.7 / 177.8 / 219 / 244.5 / 273.1 / 323.9 / 339.7 / 355.6 mm
9 hydro tester roll sets
Electric cabinets
Hydraulic system
Uncoiler
Leveler
Shear welder
Flying shear
Conveyor
Runout table
Spiral horizontal accumulator
Horizontal shaft diameter: 220 mm
HF welder and annealer
HF welder power: 1000 kW
MF seam annealers: 3 x 500 kW
Forming machine
Sizing machine
Mill cutter
Stopped running in 2016
