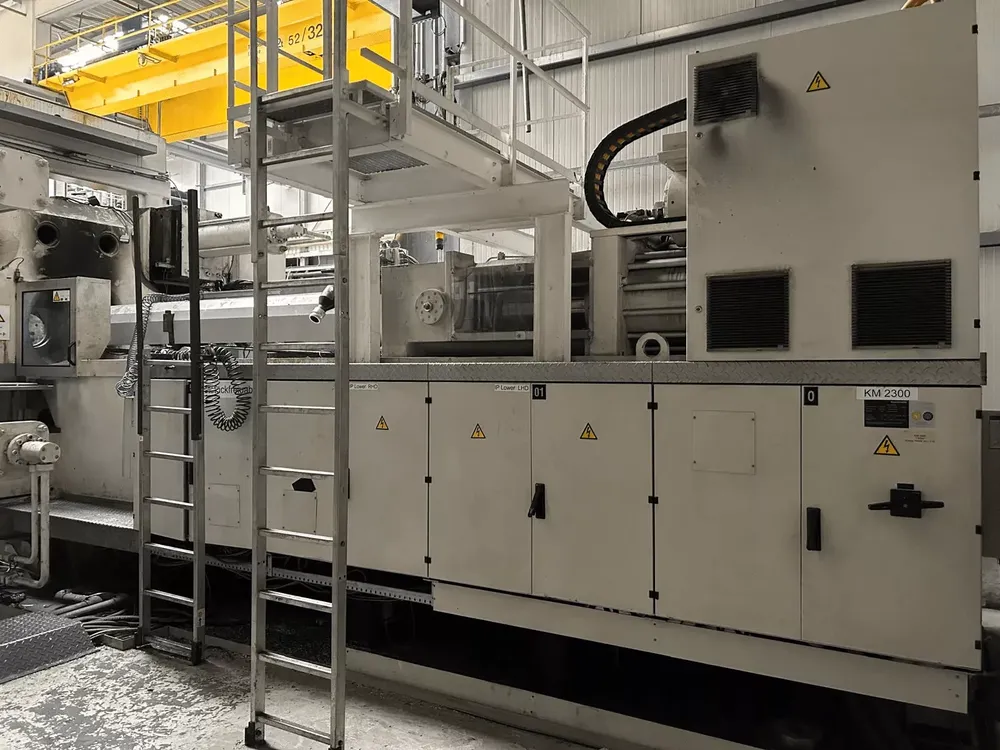

Krauss Maffei KM 2300-12000 MC 23000 kN

Clamping force 23000 kN
Maximum mold opening force 1420 kN
Moving platen opening force 227 kN
Moving platen closing force 203 kN
Platen size 2830 x 2400 mm
Tie bar spacing 2000 x 1600 mm
Mold opening stroke 2600 mm
Minimum mold height 1100 mm
Maximum mold height 1800 mm
Maximum daylight opening 3700 mm
Hydraulic ejector stroke 350 mm
Ejector force forward/backward 415 / 115 kN
Control CNC MC4
Screw diameter 135 mm
L/D ratio 23
Injection pressure 1389 bar
Shot volume 8588 cm3
Shot weight PS 7815 g
Injection rate 1019 cm3/s
Screw speed 113 rpm
Maximum plasticizing capacity 191 g/s
Nozzle contact force 241 kN
Pump motor power 132 kW
Installed heating power 997 kW
Cylinder heating zones 7
Dry cycles 350 1/h
Tank capacity 2500 l
LRX 1000 robot
Robot X axis travel 2000 mm
Robot Y axis travel 3000 mm
Robot Z axis travel 5000 mm
Machine dimensions 15150 x 4150 x 3290 mm
Machine weight 143000 kg
Maximum mold weight 62000 kg
Operating hours 93900 h
