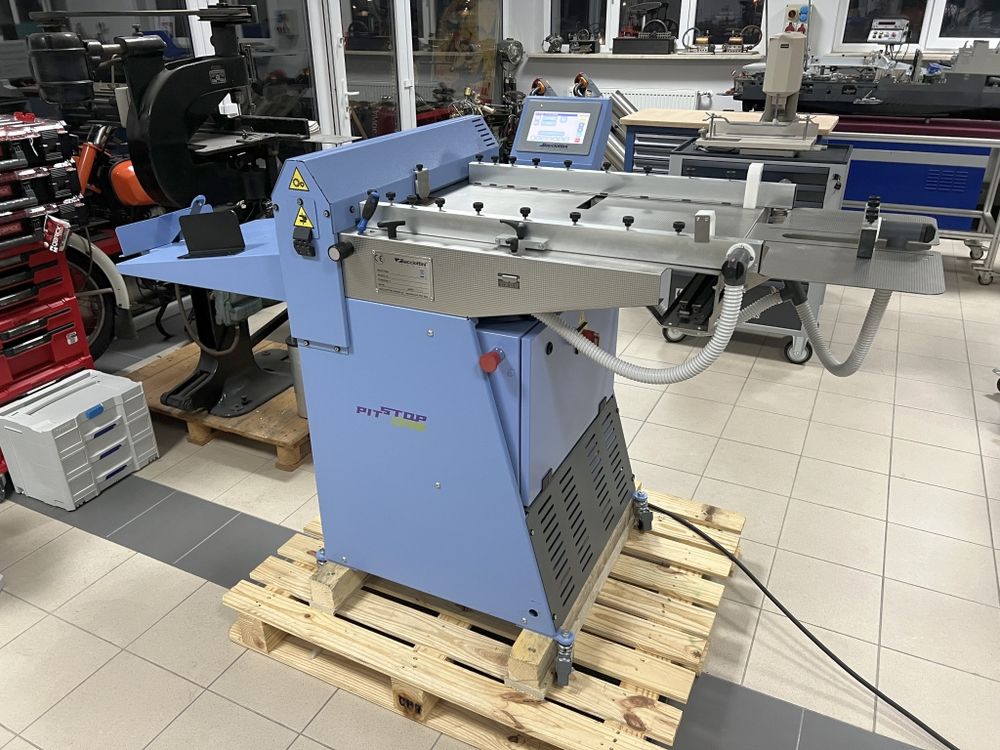

Bacciottini Pit Stop AF

High Speed ​​Automatic Creaser
Fully operational and ready to use.
This is the most efficient creasing and perforating system on the market, with a robust design.
Non-stop vacuum feeding with the option of adding material during operation.
Two independent compressors (suction and airflow).
The set includes creasing and perforating tools.
Machine with an enlarged format up to 1000mm. Technical data:
Maximum sheet size: 500×1000 mm
Min. sheet size: 100×150 mm
Maximum speed (for A4 format): 10,500 sheets/h
Material weight: 80-600 GSM
Maximum number of creases per sheet: 100
Gap distance: 0.1 mm
Setting accuracy: 0.1 mm
Power supply: 400 V
Power consumption: 3.5 kW
Weight: 233 kg
Dimensions: 170 x 85 x 120 cm
