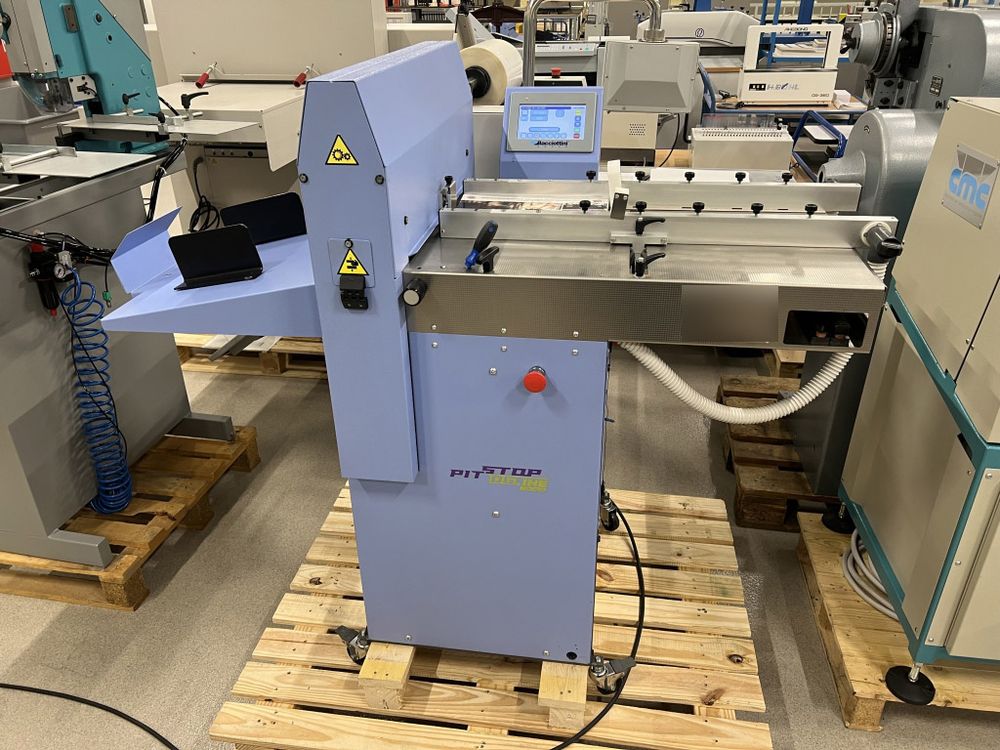

Bacciottini Pit Stop DG LINE 8000

Automatic Creasing Machine
Fully operational and ready to use.
This is the most efficient creasing and perforating system on the market, featuring a robust design.
Non-stop vacuum feeding with the ability to add material during operation.
Built-in compressor.
The set includes creasing and perforating tools.

Technical data:
Maximum sheet size: 500 x 700 mm
Min. sheet size: 80 x 100 mm
Maximum speed (for A4 format): 8000 sheets/h
Material weight: 80-400 GSM
Maximum number of creases per sheet: 20
Gap distance: 0.1 mm
Setting accuracy: 0.1 mm
Power supply: 230 V
Power consumption: 2 kW
Weight: 180 kg
Dimensions: 1500 x 750 x 1200 mm
