Backtech PRODUCE STAMPED ROLLS, BUNS & MINI-BAGUETTES LINE

Was being used to produce frozen part-baked products
Products with a weight of 40 to 90grammes
Designed for one person operation
Capacity up to 6000 pieces, depending on product & weight

With
APV PAVAILLER Spiral Mixer, Model S125CF, 200Kgs capacity, fixed bowl, 2-speed forward, 1-speed reverse

Line also includes :
Mega-Star Model: MS 5/30-100
Dough divider moulder with 5 pockets
Manual feeding through a hopper
Quickly interchangeable dividing pistons
Belt round moulder
Exterior moulding drums (honeycomb drum)
Touch-screen control for recipes adjustment
Height of the spreader belts: 800 mm
Weight (approx.): 900 kg. Power: 1.5 kW. Size (W x L x H): 900 x 1530 x 1750 mm.

Vario-Star Duo Model: VSDK/L 5-4-3
Output: 6000- 4800- 3600 round and long formed rolls
10 to 11 minutes resting (pre-proofing) time
200 active proofing cups
Temperature and humidity control
Separate moulding units for round and the long rolls
Direct switchover from one proofing mode to another
Forming tools for rosetta, kaiser rolls, special shape, rustic bread

En block final proofing cabinet
Power: 7.5 kW. Weight: (approx..): 1950 kg. Size (L x H): 4940 x 2830 mm.

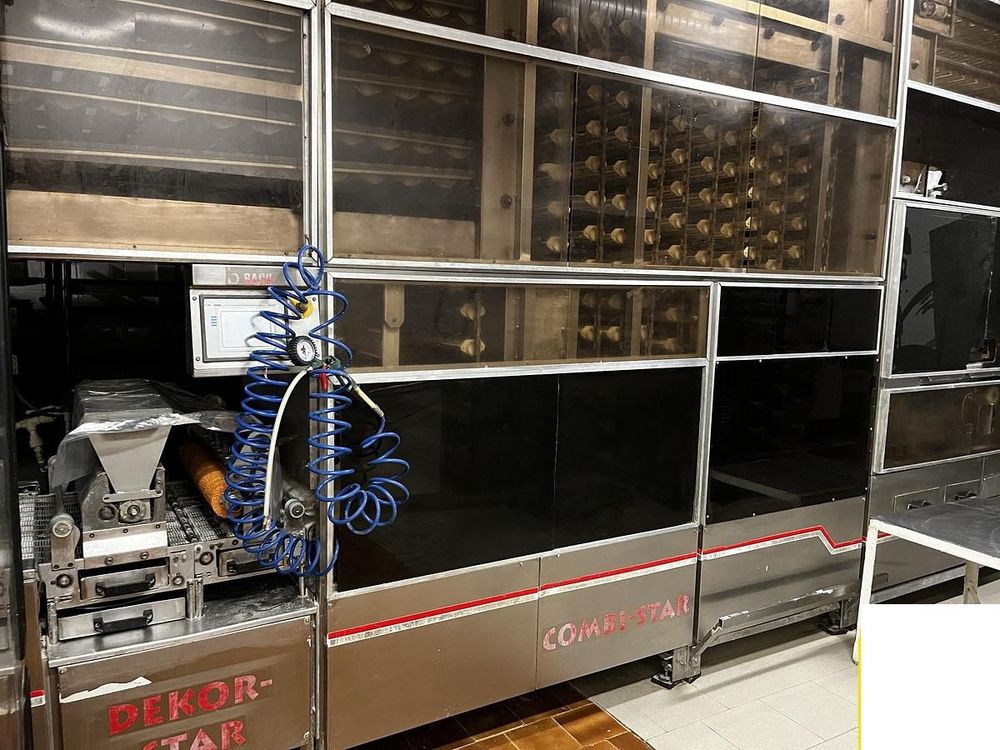

Combi-Star, Model: CSL 20/390
Final proofer
20 minutes proofing time
Temperature and humidity control
Décor-Star, Model DS 600
Wetting by wetting roll, water fed by spray nozzles
Seeds are sprinkled by seeder
6 hoppers for seeding materials
Trolley for the hoppers
Stainless steel container for collection of excess seed
Power: 0.6 kW. Working width: 600 mm. Size (L x H): 750 x 1180 mm.
Mono-Star, Model: MS 600/1
Panning with retracting belt
With computer and pieces counter
For maximum tray size 580 x 980
Weight: 1220
Power: 2 kW. Size (L x H): 1680 x 940 mm.
Robo-Star, Model RS 58/98
Fully automatic tray loading system
Removes the empty tray from the rack and deposits it in the depositing area of the roll plant
Removes the filled tray and place it in the rack.
Possibility to work with various trolley designs.
Also including :
20 x Stainless Steel racks for Robo-Star, for 18 trays dimensions 600 x 800mms
200 x Flat Perforated Flat trays for Robo-Star, teflon, 600 x 800mms
60 x Corrugated & Perforated trays for baguettes, teflon, 600 x 800mms
1000 x Plastic Stackable Trays for rolls, Stackable nest bun trays in two dimensions: 640 x 540 x 117 mm and 640 x 540 x 96 mm,

Ventilated base and walls, Two open hand holes, Suitable for storing and freezing products, Working temperature: - 40 ֯C - +70 ֯C, Material – High density polyethylene (HDPE).
