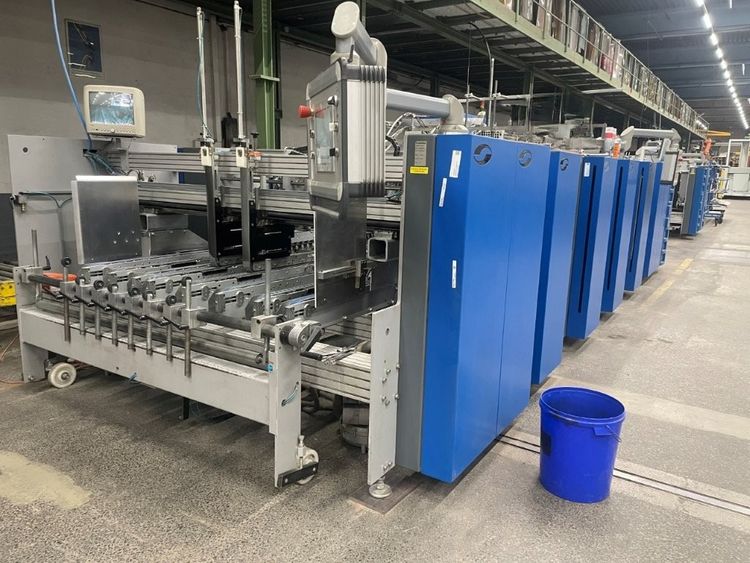

Bahmuller FK2 2100

Base Machine:
BJD-2100, Year of manufacture: 2008
ACE Feeder
Dynamic Fold I – II
Finalbox Fold Trombone Unit
Press-Conveyor 1200 mm
Including Boxflow® Control

Options for the Base Machine:
ACE Feeder
Cleaning Brush (1 unit)
Stacking Press Device (1 unit)
Dynamic-Fold: Turbox Unique Fold (1 unit)
Finalbox-Fold: 6-Point Inside Folding Device (1 unit)

Trombone Unit:
Finger Aligner (1 unit)
Press Roller adjustable left/right (1 unit)
Alignment Section with oscillating pusher plate (1 unit)

Press-Conveyor 1200 mm:
FSU 3 units (1 unit)
Press Conveyor Extension 2000 mm (1 unit)

Glue Unit:
HHS Non-Contact Cold Glue System “XTS-E16” (6× single-head nozzles) (1 unit)
Additional Glue Nozzle “P-500” (2 units, more added later)
Additional Glue Bridge (1 unit)

Boxflow® Control:
BOS (Bahmüller Online Service) (1 unit)
Right-hand operation (1 unit)

Processing range:
Straight-line boxes
Crash-lock bottom boxes
Crash-lock bottom boxes with partition
Multi-compartment boxes
4-point boxes
4-point boxes with lid
6-point boxes with outer folding
6-point boxes with inner folding

Technical data – BJD 2100:
Board grades:
Solid board: 800 – 1500 g/m²
A, B, C, E, F, FE, EE, BE, BC flute

Max. blank size (open): 2100 × 1200 mm
Min. blank size (open): 380 × 160 mm
Min. folded size: 185 × 130 mm
