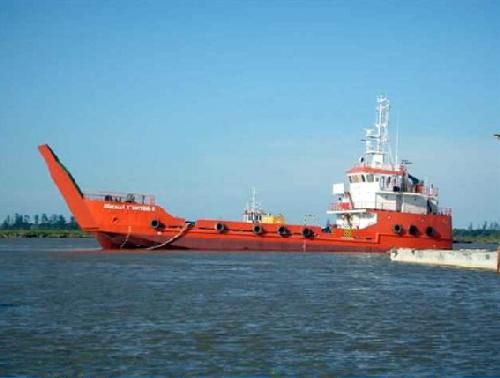

Barge & Landing Craft DWT: 389.151 T

LOA: 45.5 m
Beam: 10.9 m
Draft: 2.4 m
GRT: 488 T
NRT: 146 T
Construction: Steel
Deck Area: 230 m²
Deck Cargo Capacity: 330 Tonnes
Deck Strength: 5 MT/SqM
Ramp: 7 × 10.5 m
Lashing Lugs: 34 Nos.
Reefer Points: 8 Nos (230/1/50 ; 415/3/50)
Engines: 2 × Cummins KTA19-M3 640 BHP @ 1800 RPM
Horsepower: 1,280 hp
Auxiliary Engine: Generator 2 × 80 kW Cummins 6BT5.9D(M), 415/3/50
Propeller: 2 fixed pitch, water-lub sterntube
Steering: Hydraulic, 2 × 2.0T-M at 35° steering angle
Thruster: Bowthruster Tunnel type, 3 tons
Fuel Capacity FO: 98 m³
Cargo Fuel: 490 m³
FO Cargo Pump: 1 × 50 m³/hr @ 50 m head
Water Capacity FW: 98 m³
Cargo Fresh Water: 108 m³
SW/Drill Water Tank: 82 m³
Sludge Tank: 4.8 m³
FW Cargo Pump: 1 × 50 m³/hr @ 50 m head
Max Speed: 11 knots
Fuel Consumption / Endurance: 30 Days
Accommodation: Fully air-conditioned, 20 berths
Facilities: Chiller / Freezer 2 m² each
Anchor: Bow Anchor 2 × 900 kg stockless anchors with 13 shackles total anchor chain
Windlass: 1 × Electro Hydraulic Twin Gypsy with 2 wrapping heads and hydraulic-electro power pack
Communication: SOLAS GMDSS for A3
MARPOL I: 1 × Oily Water Separator
MARPOL IV: 1 × Sewage Treatment for 25 Men
Safety & Fire Fighting: In compliance with Class & Flag Administration Requirements
LSA: For 24 men
Rescue Boat: 6 men semi-inflatable with outboard engine & davit
Survey Class: LR +100A1, MCN
