Barmag, Davis Standard, Neumag BCF Extrusion Lines

Type S5
Designed for PET Yarns 1000 to 2400 Denier
Mono color
Neumag Hot Draw Godets and Texturing / Crimpers

LINES #1 & 2

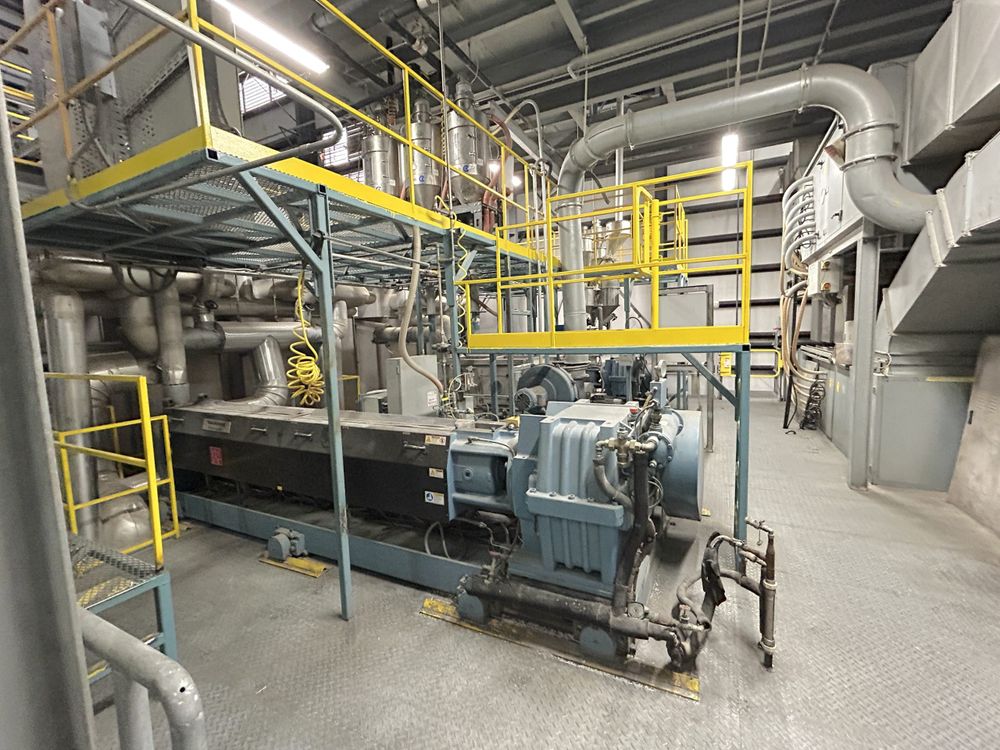

(2) Davis Standard Fibermaster II Extruders
4.5 inch screw diameter Line #1
2.5 inch screw diameter Line #2
30:1 Ratio
With
(2) Colortronics individual dosing
With
(1) Walton Stout 1500 Combined Dryer
Individual Quench
Individual Dow Therm System
4 Position Line #1
2 Position Line #2

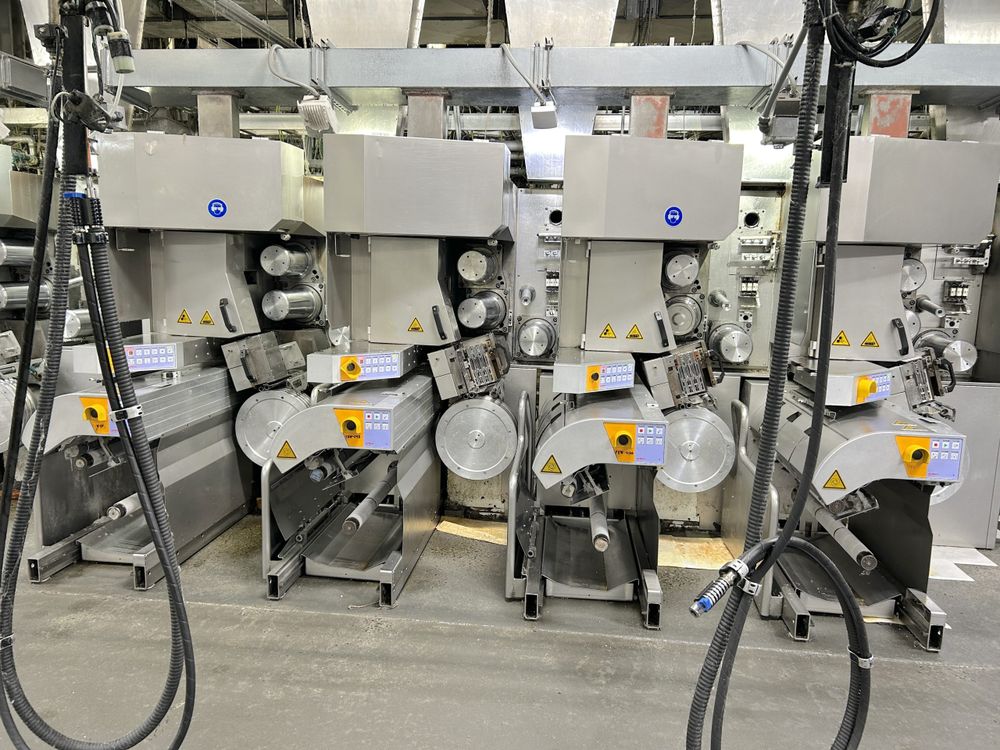

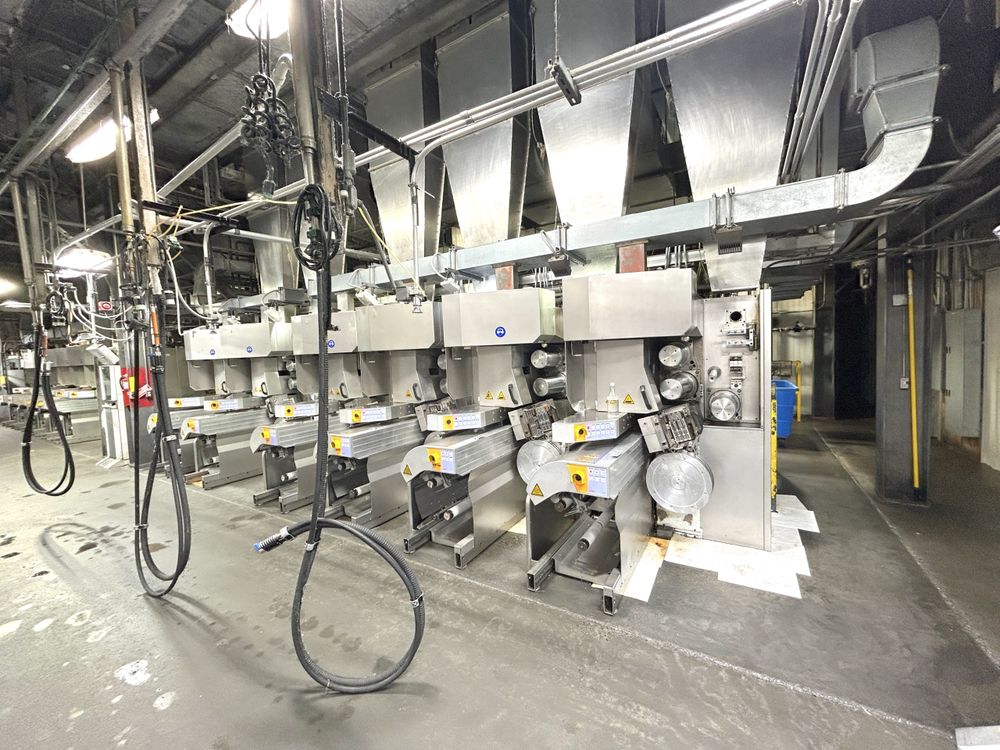

(6) Barmag Witras Take up winders
3 ends
1000 mm Chuck length
Automatic Doffing
Year 2006

LINES 3, 4 & 5
(3) Barmag Extruders 10E10/300 – 2.5 inch screw diameter
30:1 Ratio
With
(3) Doteco dosing
With
(1) Walton Stout 1500 Combined Dryer
Combined Quench
Combined Dow Therm System
2 Positions each line with
(6) Barmag Witras Take up winders
3 ends
1000 mm Chuck Length
Automatic doffing
Year 2006

LINE #6 & 7
(2) Davis Standard Fibermaster II Extruders
4.5 inch screw diameter Line #6
2.5 inch screw diameter Line #7
30:1 Ratio
With
(1) Colortronics individual dosing Line 7
Doteco Dosing Line 6 ( removed )
With

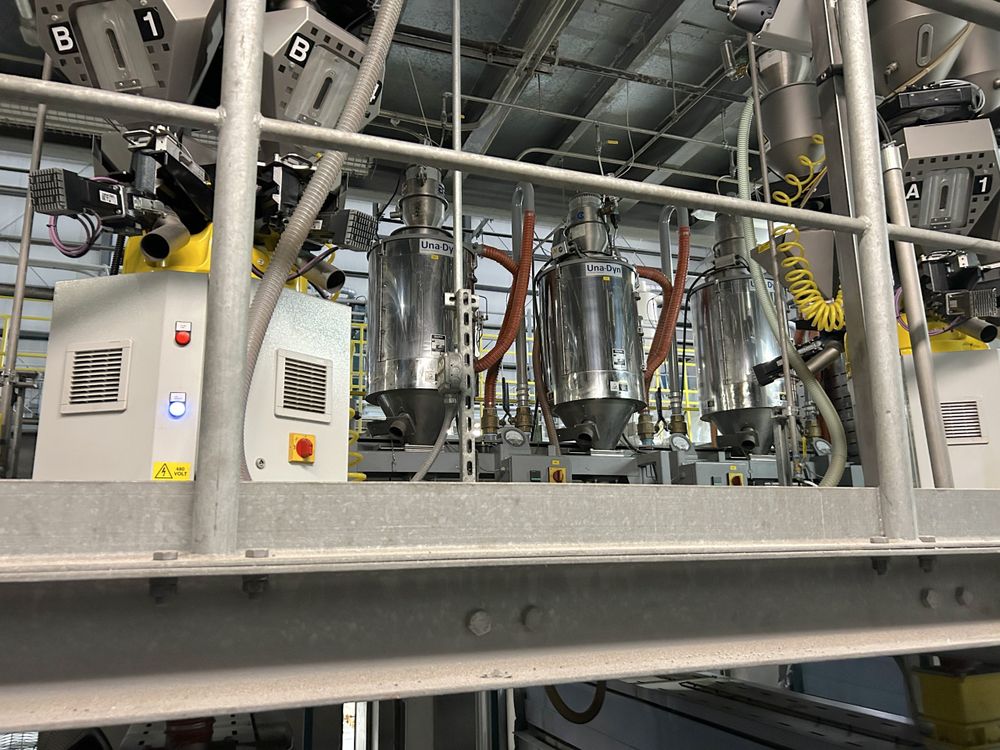

(1) Unadyn 1500 Combined Dryer
Individual Quench
Individual Dow Therm System
4 Position Line #6
2 Position Line #7
(6) Barmag Witras Take up winders
3 ends
1000 mm Chuck length
Automatic Doffing
Year 2007

LINE 8
(1) Barmag Extruder 10E10/300 – 6 inch screw diameter
30:1 Ratio
With
(1) ABS dosing
With
(1) Walton Stout 1500 Dryer
Individual Quench
Individual Dow Therm System
6 Positions with
(6) Barmag Witras Take up winders
3 ends
1000 mm Chuck Length
Automatic doffing
Year 2008

LINES #9 & 10
(2) Davis Standard Fibermaster II Extruders
4.5 inch screw diameter Line #9
2.5 inch screw diameter Line #10
30:1 Ratio
With
(1) ABS Individual Dosing system Line 9
(1) Colortronics individual dosing Line 10
With
(2) Walton Stout 1500 Individual Dryers
Combined Quench
Combined Dow Therm System
4 Position Line #9
2 Position Line #10
(6) Barmag Witras Take up winders
3 ends
1000 mm Chuck length
Automatic Doffing
Year 2008
