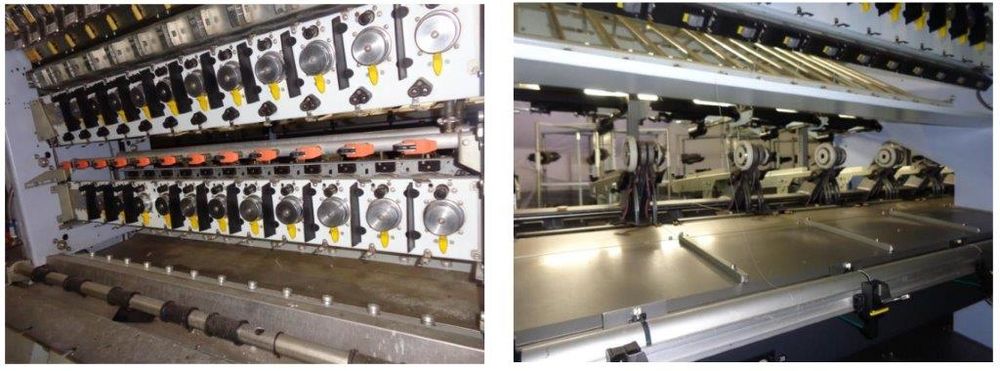

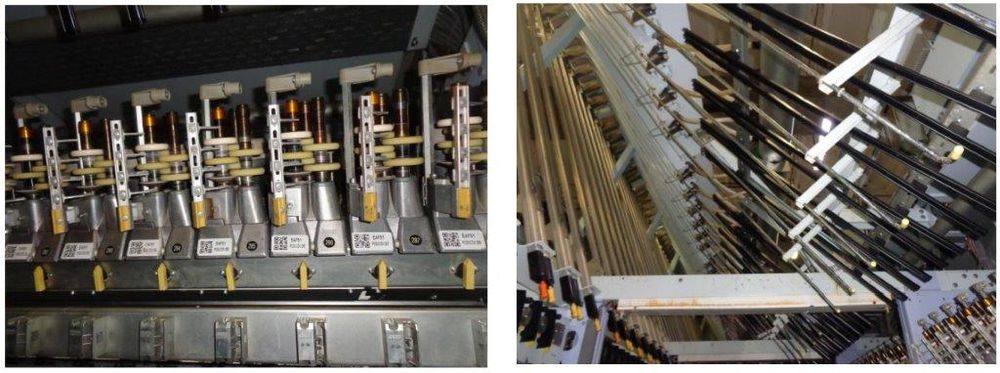

Barmag eAFK V2.0 - 1.1 Multispindle
Ref :
2757326-1-FM
Condition :
Used
Manufacturer :
Barmag
Model :
eAFK V2.0 - 1.1 Multispindle
Year(s) :
2017
Quantity :
1
Location :
Seller or machines location:
AMERICA North (USA-Canada-Mexico)
AMERICA North (USA-Canada-Mexico)
Mdl eAFK V2.0 - 1.1 Multispindle
2 heaters
Autodoffing
288 positions
Denier range: 22~330
Unitens tensioning
Air Entangling
Individual motor friction disc drives
Full set jets and Dtorque jets
Full set of Temco discs
Air dryer
process simultaneous draw-texturing of continuous filament
mechanical speed range 300 to 1.000 m/min
polymer process range polyester
denier range 30 den to 200 den single yarn end
crimp insertion by friction aggregate with discs
cross section V
number of heaters per section 2 primary,2 secondary
number of sections (pos.) 12 sections (288 pos.)
yarn ends / positions per section 48/24 pos.

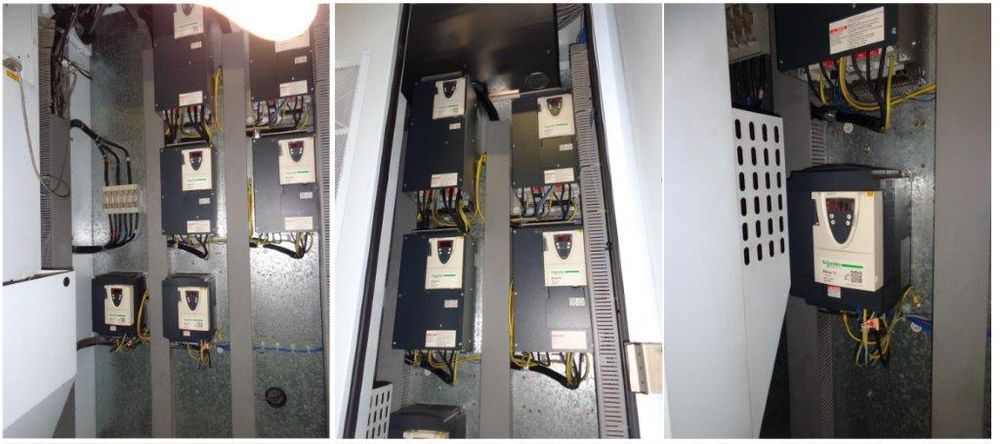

electrical system AC-version, inverter controlled
m/c operation type split version, A&B-side to be operated separately
