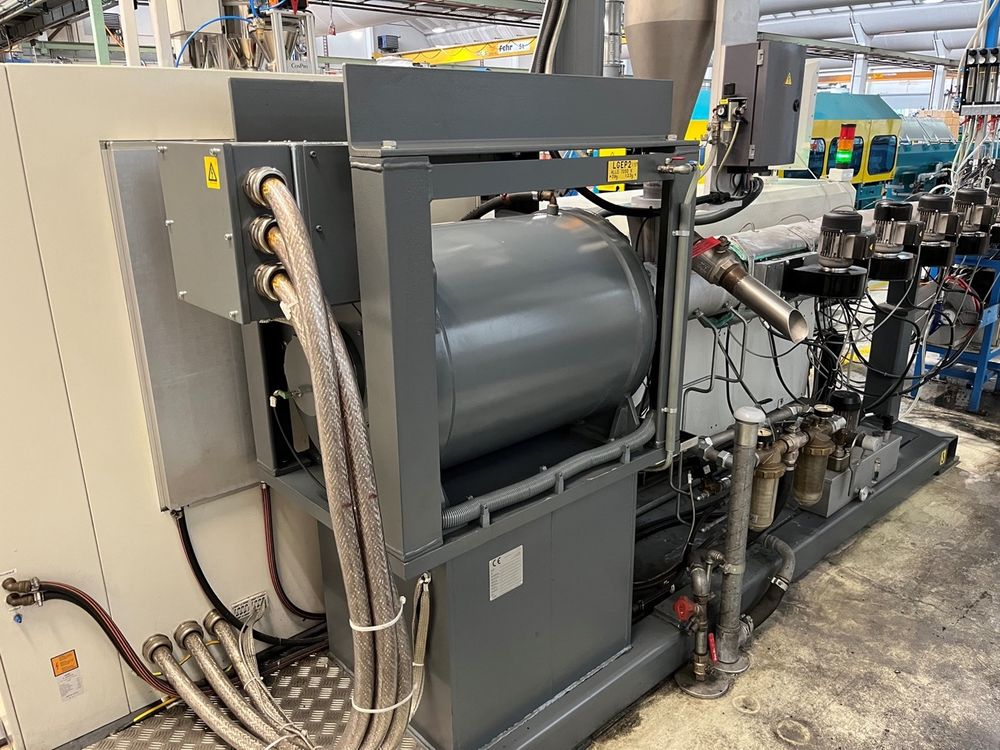

Battenfeld, Cincinnati solEX 60-40 GL

Single-screw extruder battenfeld-cincinnati solEX 60-40 GL (gearless)
Output capacity: 80 - 800 kg/h for HDPE pipes
Gearless AC high-torque motor with 205 kW rated power
(water-cooled)
Rated speed: 310 rpm
Nitrided screw - in the feeding zone with flight coating
(Condition: good)
Screw diameter: 60 mm, L/D = 40
Bimetallic barrel with 5 heating and 5 cooling zones
(condition: good)
Barrel with grooved feed zone
Microprocessor control BMCtouch
Mass pressure and mass temperature sensors
Number of heating zones: 14 + 1 (mould + adapter)
Total connected load: 309 kVA
Total fuse rating: 447 A
Dimensions (L x W x H): 4,315 x 1,260 x 2,180 mm
Weight: approx. 4,000 kg

Condition:
Very good – the extruder is operated exclusively with
virgin PE100 material from Borealis and will remain in
production until end of 2025.
Main motor was completely overhauled in 2024 and
fitted with new bearings.
