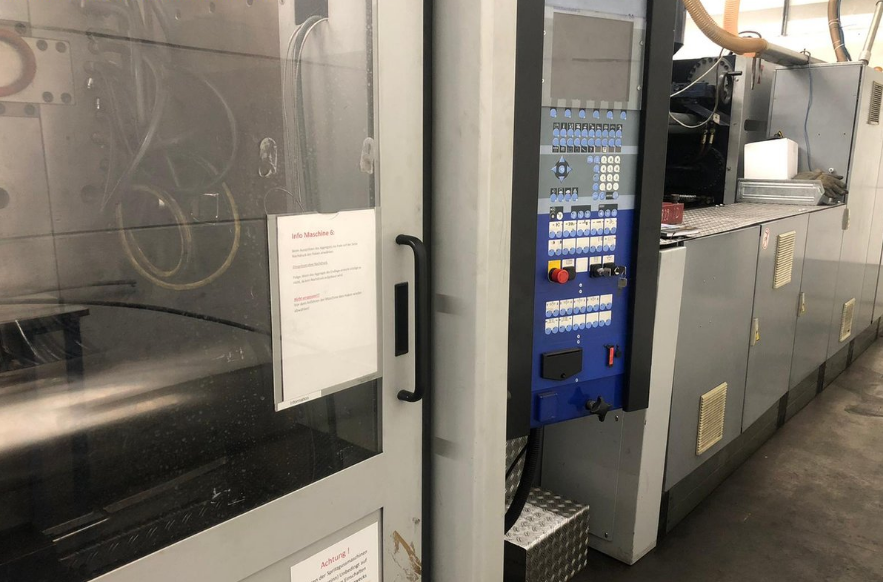

Battenfeld HM 10000-9200 1000 T

Type: HM 10000-9200
Steering: UNILOG B4
Year of construction: 2003
Operating hours: 67092 h

Technical data Closing side
Closing force: 10000 kN
Holm mass hxv: 1120 x 1400 mm
Plate size hxv: 1960 x 1690 mm
Minimum installation height: 550 mm
Maximum installation height: 1020 mm
Maximum plate spacing: 2120 mm
Opening method: 1100 mm
Ejector stroke: 300 mm
Ejector force: 118 kN
Centering movable plate D: 250 mm
Centering fixed plate D: 315 mm

Technical data spray side
Screw diameter: 120 mm
Engine displacement: 5655 cc
Injection pressure: 1632 bear
Snail length: 22 l/d
snail stroke: 500 mm
worm speed: 130 min
Worm torque: 11370 N
Plasticizing current: 144 g/s PS
Injection flow to the open air: 1144 g/s PS
Number of heating zones: 8
Nozzle path: 700 mm

Dimensions & Weight
Machine dimensions (L x W x H): 11.6 m x 2.9 m x 2.5 m
Total weight: 76500 KG

equipment
Bildschirmtext German
Compact Flash drive
Hydraulic core pull 4x
Leveling elements
EUROMAP 12 interface
Interface for temperature control unit
enlarged oil cooler
Tool heater 16x
