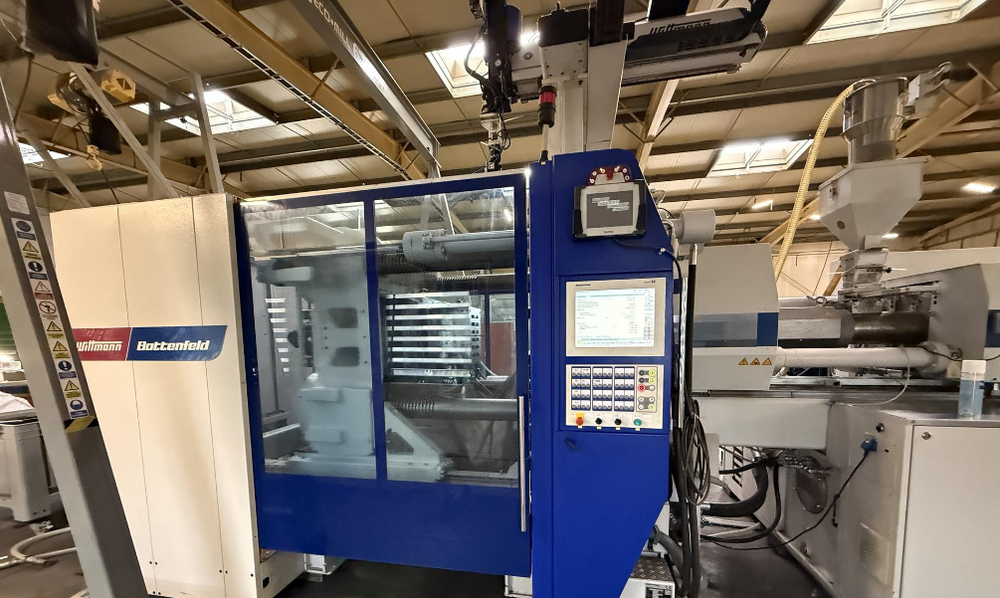

Battenfeld, Wittmann Macro Power E450/2250 Unilog B6 450 T

Control system: UNILOG B6
Closing force: 4500 kN
Distance between columns: 950 × 700 mm
Minimum mold height: 330 mm
Maximum mold height: 780 mm
Screw diameter: 65 mm
Injection pressure: 2070 bar
Maximum injection weight: 980.9 g

Injection unit: ServoElectric (Knodler)
Injection speed: 400 mm/s
Servo package S0
ServoPower package S1: hydraulic pump speed control for increased energy efficiency
Integrated filter unit: Yes

Ejector type: Electric
Ejector force: 60 kN
Ejector stroke: 180 mm

Additional equipment:
Air valve
Cooling water flow regulator
Digital interface for temperature controllers (control of up to 6 thermoregulators)
Interface for nozzle needle shut-off control in the mould
Interface for external hot runner controller
Full integration for Wittmann W8xx series robot
Quality control button

Language: Polish
