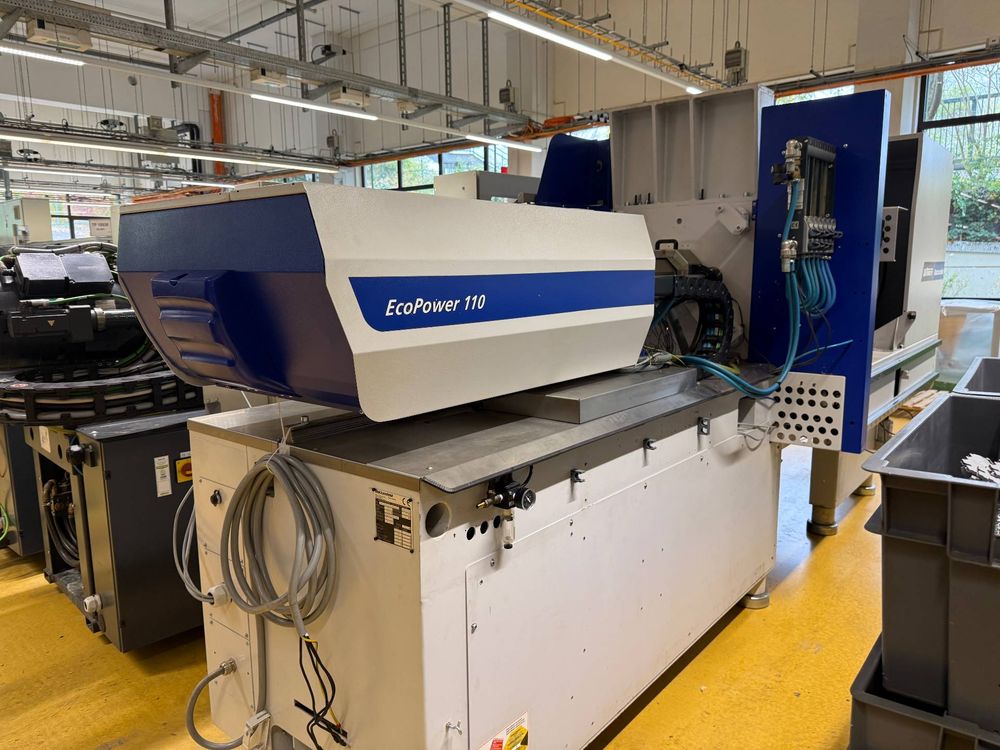

Battenfeld, Wittmann EcoPower 110/130 UNILOG B6 110 T

Clamping unit
Clamping force110 ton
Opening stroke380 mm
Distance between tie bars470 x 420 mm
Mould height min.200 mm
Mould height max.450 mm
Platen size (h x v)680 x 663 mm

Injection unit
Screw diameter30 mm
Injection volume88 cm³
Shot weight80 g
Injection pressure1471 bar

Measurements and weight
Dimensions4,8 x 1,4 x 2,2 m
Machine weight4600 kg

Additional Information:
Wittmann Battenfeld EcoPower series represents high-efficiency
all-electric injection moulding technology designed for
precision production and stable processing performance.

All major machine movements are driven by servo electric motors.
Injection, dosing, clamping and ejector movements are
performed completely electrically, ensuring extremely precise motion control,
excellent repeatability and stable production quality.

Compared to conventional hydraulic injection moulding machines,
the EcoPower series can achieve approximately 60% up to 80% energy savings
depending on the application. In addition, the machines offer lower heat generation,
quiet operation and a cleaner production environment.

The integrated UNILOG B6 / B6P control system is well known for
its user-friendly operation, reliable process management and
stable long-term performance.
Combined with high dynamic servo technology and low-vibration operation,
the EcoPower platform is especially suitable for technical plastic parts,
electronic components, automotive applications and medical production.

Today, the Wittmann Battenfeld EcoPower series is still considered one of
the most reliable and energy-efficient all-electric injection moulding machine
platforms on the market.
