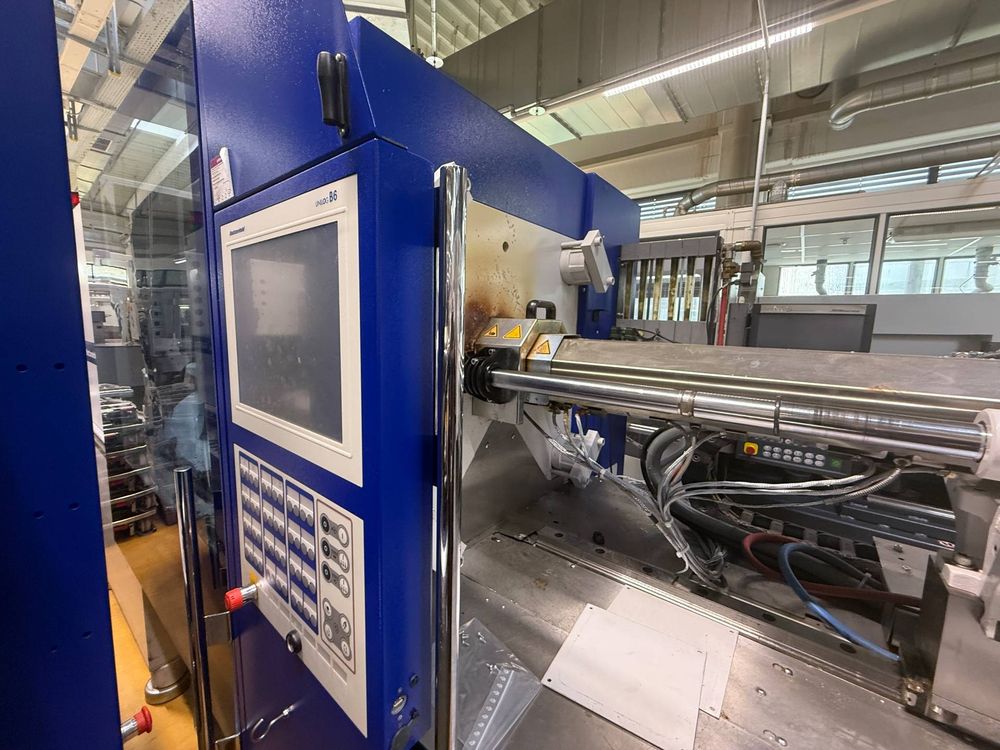

Battenfeld, Wittmann EcoPower 180/350 UNILOG B6S 180 T

Clamping unit
Clamping force180 tons
Opening stroke480 mm
Distance between tie bars570 x 520 mm
Mould height min.225 mm
Mould height max.550 mm
Platen size (hxv)810 x 805 mm

Injection unit
Screw diameter35 mm
Injection volume168 cm³
Shot weight163 g
Injection pressure2083 bar

Measurements and weight
Dimensions5.2 x 1.6 x 2.2 m
Machine weight6800 kg

Additional Information:
The Wittmann Battenfeld EcoPower series represents highly efficient,
all-electric injection molding technology, designed for
precise production processes and stable manufacturing conditions.

All main machine movements are driven by servo-electric motors.
Injection, metering, closing, and ejection are fully electric,
enabling extremely precise motion control, high repeatability,
and consistent production quality.

Compared to conventional hydraulic injection molding machines,
the EcoPower series can achieve energy savings of approximately 60% to 80%,
depending on the application. In addition, the machines offer
reduced heat generation, quiet operation, and a clean production environment.

The integrated UNILOG B6/B6P control system is known for its user-friendly operation,
reliable process control, and stable long-term performance.
Combined with highly dynamic servo technology and low-vibration operation,
the EcoPower platform is particularly well-suited for technical plastic parts,
electronic components, automotive applications, and medical devices.

The Wittmann Battenfeld EcoPower series remains one of the most reliable
and energy-efficient all-electric injection molding machine platforms on the market.
