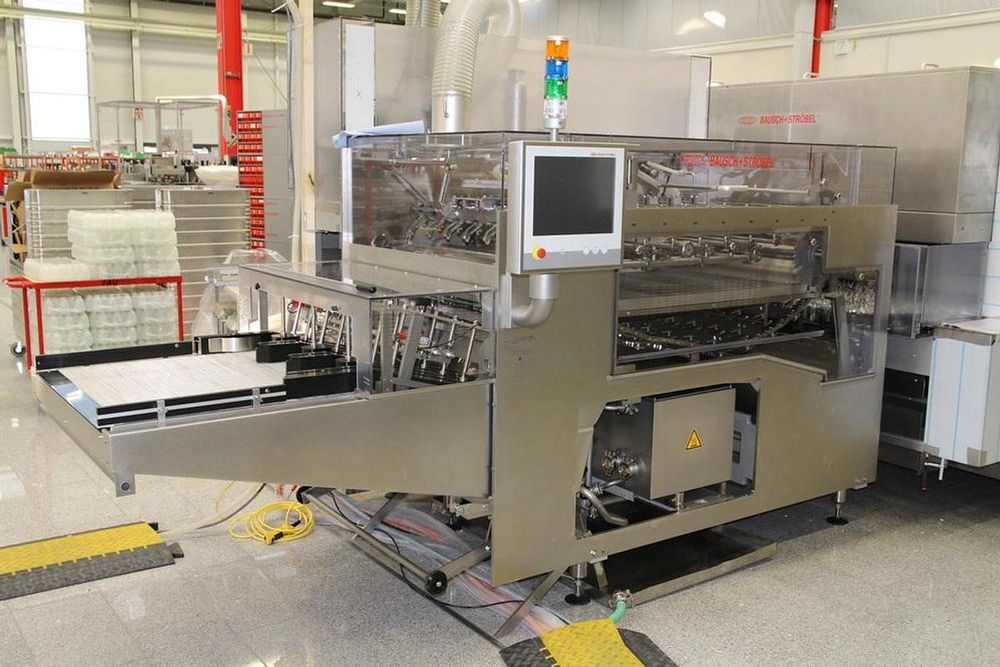

Bausch & Stroebel AWU 6030, DHT 62125, ESM 10010, RVB 4080 Bottle washing/sterilizing/filling/capping system
EUROPE (Western and Northern)
Construction in a straight line.
Maximum output: 5,800 bottles/h, with sterilization under DHT 62125 and CFDA conditions: 4,000 bottles/h (100 ml), 2,250/h (250 ml), 1,500/h (500 ml).
Usable bottle sizes depending on the format: diameter 16-98 mm, height 85-180 mm
Rubber stoppers usable according to formats: diameter 12-35 mm, height 6-18 mm
Crimping plugs usable according to formats: diameter 12-40 mm, height 6-18 mm
Available formats for 100, 250 and 500 ml glass bottles
Parts in contact with the product made of AISI 316L stainless steel
Siemens S7 PLC
Bausch & Ströbel OVD HMI (Operation, Visualization, Data Collection and Evaluation) 15-inch touch PC for basic operation
Windows Embedded Standard 7 operating system
Menu languages: German, English, Chinese
User administration according to 21 CFR part 11 EU GMP annex 11
Ethernet interface
Compact Flash (CF) card
UPS for HMI
Electrical connection 230/400V/50Hz
Without CE marking
