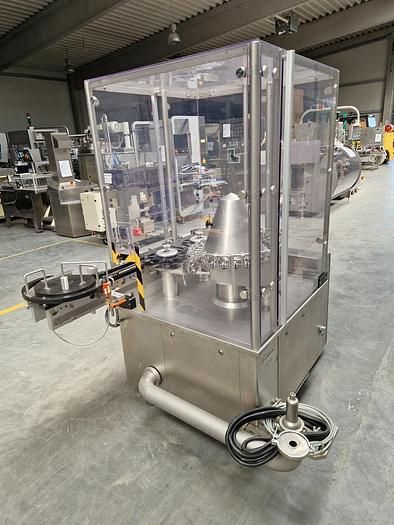

Bausch & Stroebel FAB 12000, Bottle Blowing Machine

• Automatic machine for cleaning (blowing) bottles using compressed air
• Travel direction: left to right
• Connection pressure: 6-9 bar, working pressure: 0.5-3.0 bar
• Maximum output: 12,000 bottles/hour
• Bottles are rotated 180° during circulation so that the openings point downwards. The blow-molding needles are immersed inside the bottles.
• Pressure sensor to verify correct blow-molding pressure.
• Extraction of blow-molding air and debris from under the bottles.
• Siemens Simatic HMI touch panel.
• Siemens S7-300 PLC.
• With format sets for 10 ml bottles (diameters 25.3 x 46.2 and Ø 24.0 x 45.0, other format sets on request).
