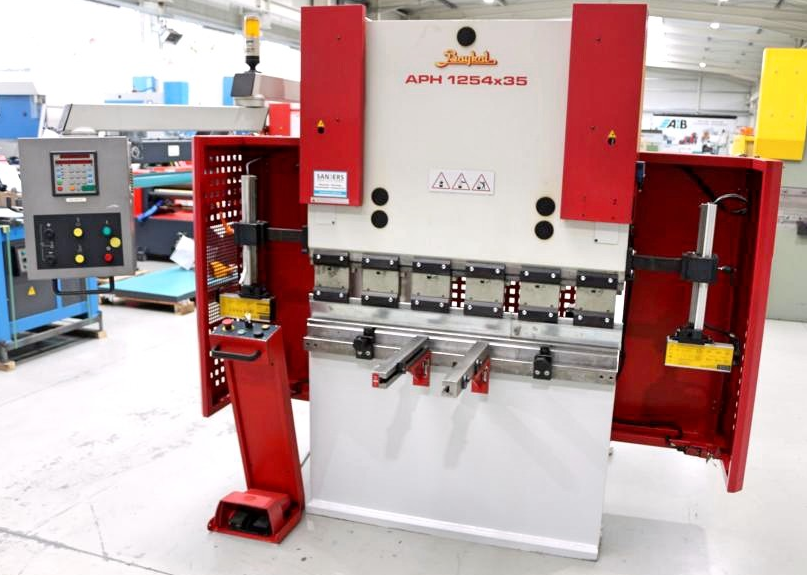

Baykal APH 1254 x 35 35 t

Control Type NC
Press Capacity 35 t
Chamfer Length 1250 mm
Distance Between Columns 1070 mm
Piston Stroke 150 + 60 mm
Column Arm 410 mm
Table Height 800 mm
Daylight 470 mm
Working Feed 10 mm/sec
Return Speed 70 mm/sec
Table Width 140 mm
Control ELGO NC
Operating Hours ~9,600 h
Oil Volume 80 l
Operating Pressure Max. 240 bar
Voltage 380 V
Total Power Requirement 4 kW
Weight 2200 kg
Machine Dimensions 1800 x 1450 x 2150 mm
Robust NC-Controlled Hydraulic Press Brake
Positioning of Backgauge (X Axis)
Positioning of Depth Adjustment (Y1+Y2 Axis)
Swiveling Control Panel, Front Left
NC Electric Motorized Backgauge (X Axis)
2x Stop Fingers, Manually Adjustable (R+Z Axis)
1x Split Set of Pointed Tools - Top
1x Rotatable Multi-V Die Block
Side Safety Device (Swivel Doors)
FIESSLER Laser Safety Device
Rear Safety Device (Swivel Door)
1x Freely Movable Double Foot Switch
2x Front Support Arms
Operating Instructions Included
