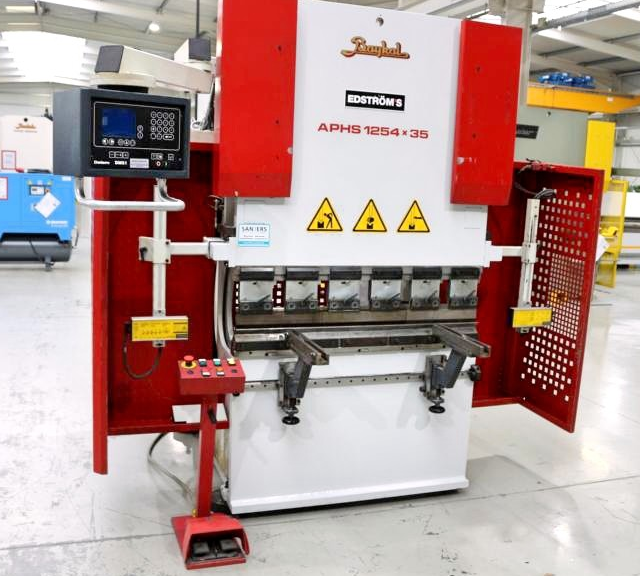

Baykal APH-S 1254 x 35 35 t

Press force 35 t
Bending length 1250 mm
Distance between columns 1095 mm
Stroke (stepless adjustable) 215 mm
Throat depth 410 mm
Table height 800 mm
Daylight 455 mm
Working feed 10 mm/sec
Return speed 56 mm/sec
Work height max 875 mm
Control DM 51
Working hours 13300 h
Oil volume 80 l
Operating pressure max 240 bar
Voltage 380 V
Total power 4 kW
Weight 2500 kg
Length 1700 mm
Width 1450 mm
Height 2250 mm

Features
CNC hydraulic press brake
DELEM DM 51 control
Backgauge positioning X axis
Depth positioning Y1 Y2 axes
Program storage
Tool storage
Swiveling control panel
CNC motor-driven backgauge X axis
CNC motor-driven height adjustment R axis
Two manually adjustable stop fingers
Split deer foot toolset top
Split Multi-V toolset bottom 16/22/35/50 mm
Side safety device swivel doors
FIESSLER laser safety device
Rear safety device swivel door
Movable double foot switch
Two front support arms
Operating instructions
CE declaration
